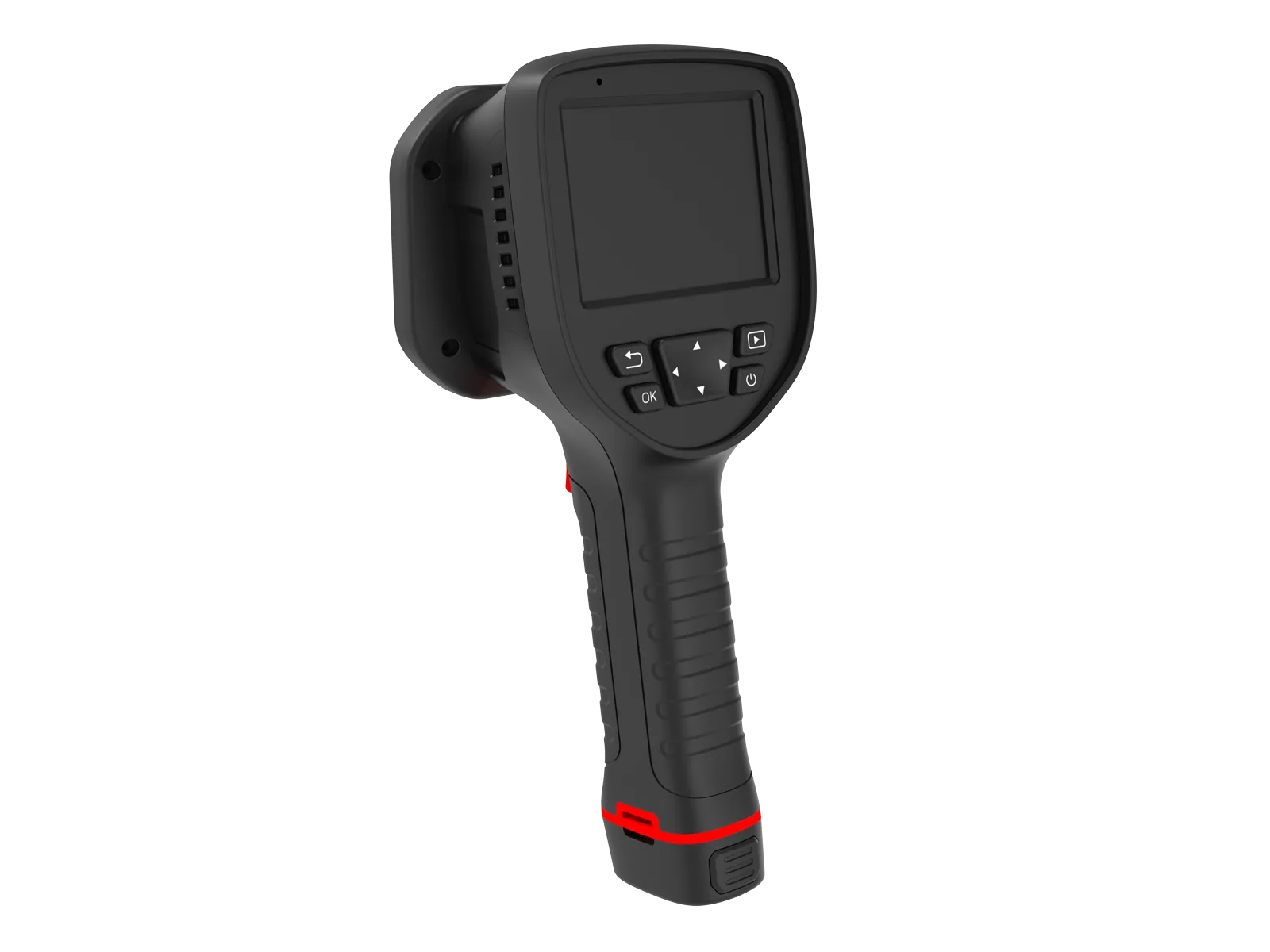

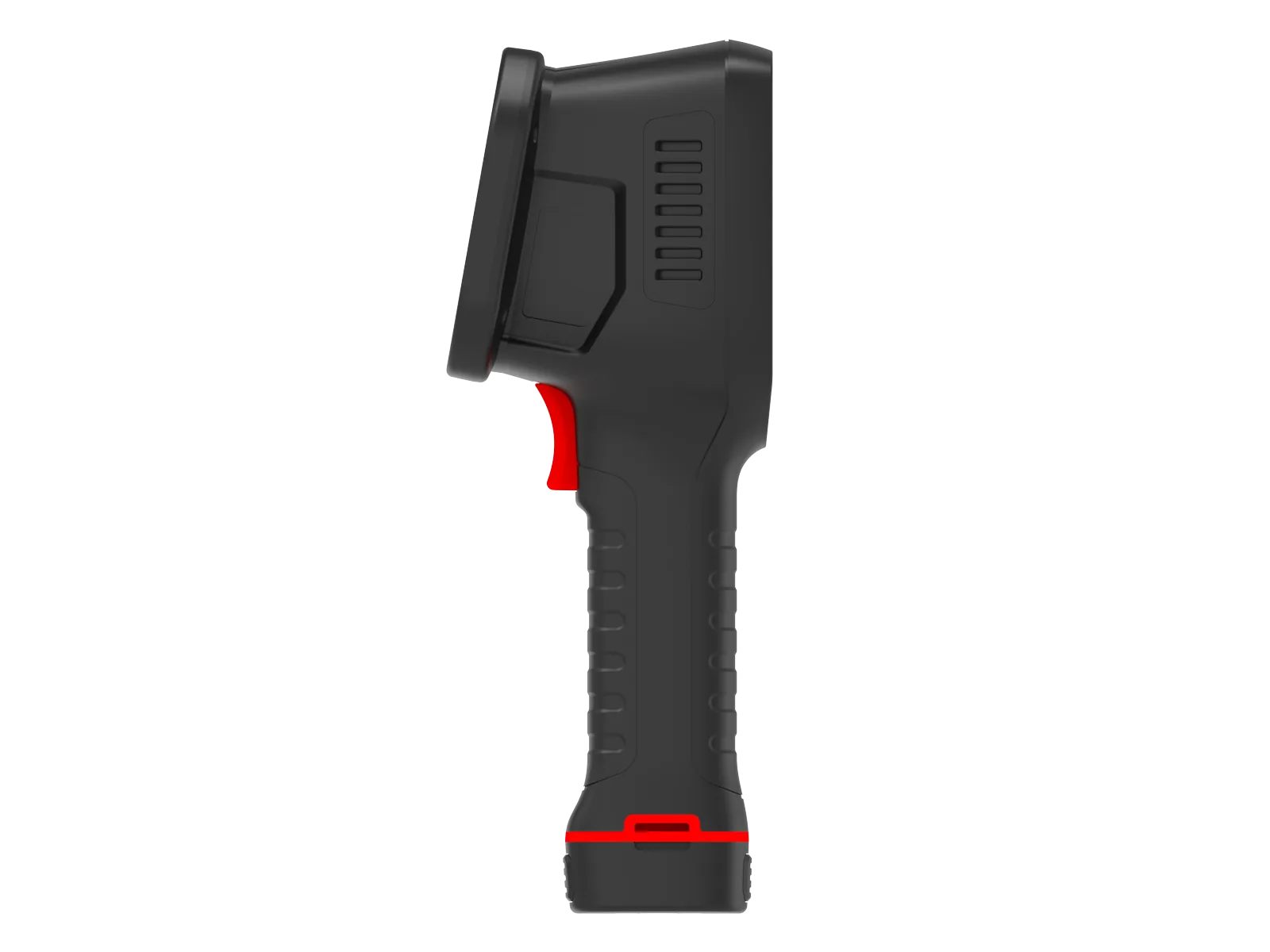

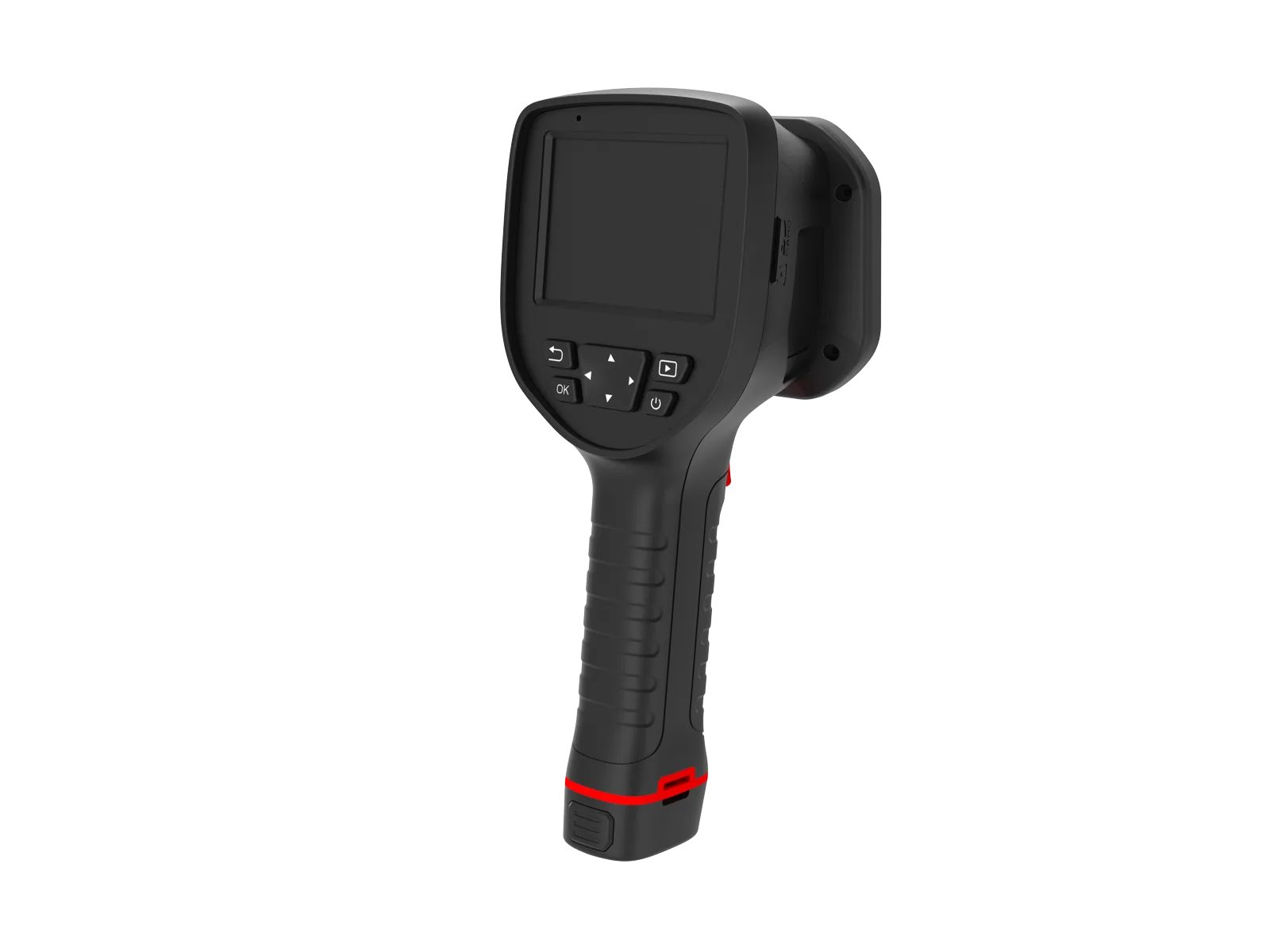

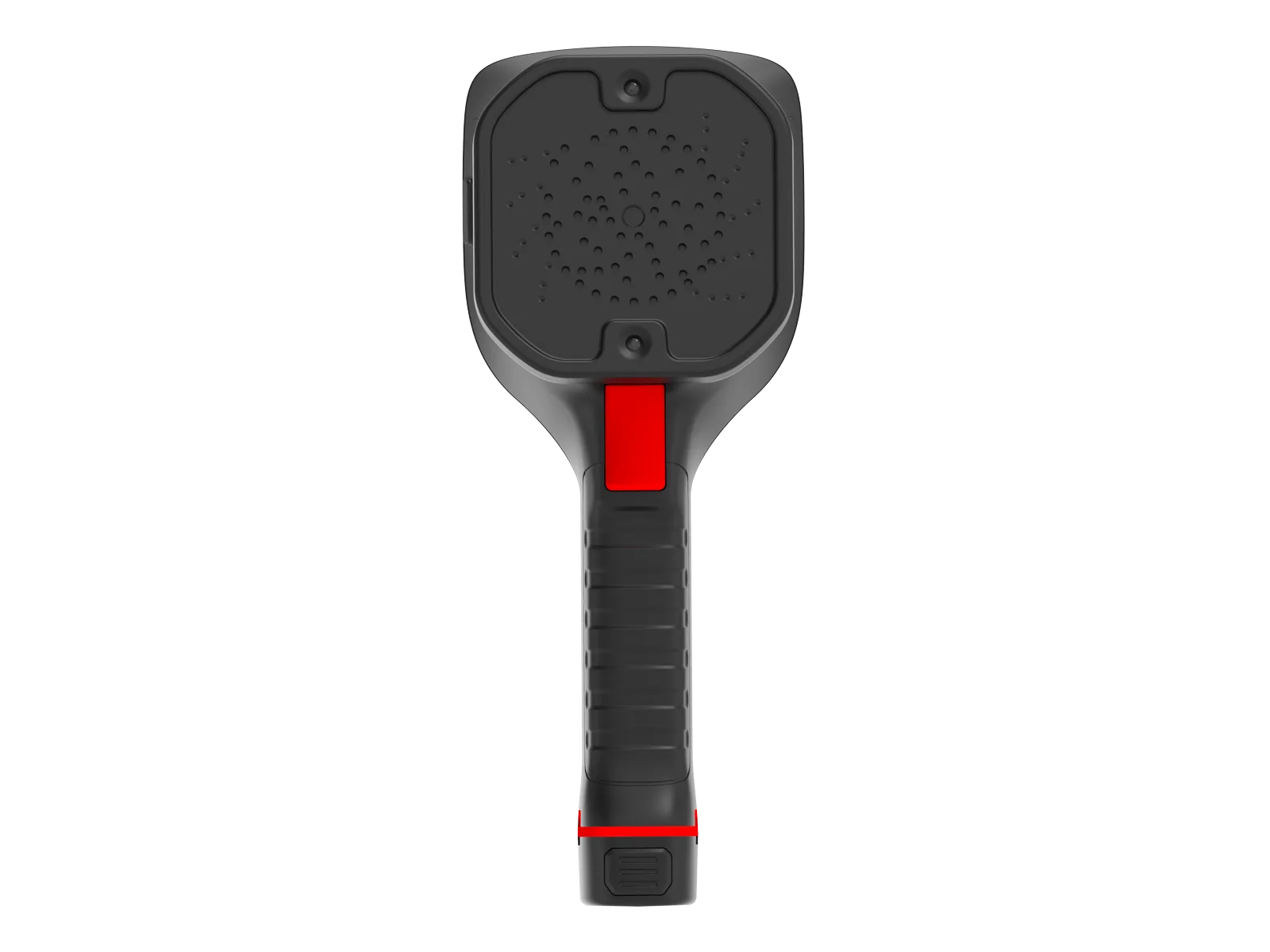

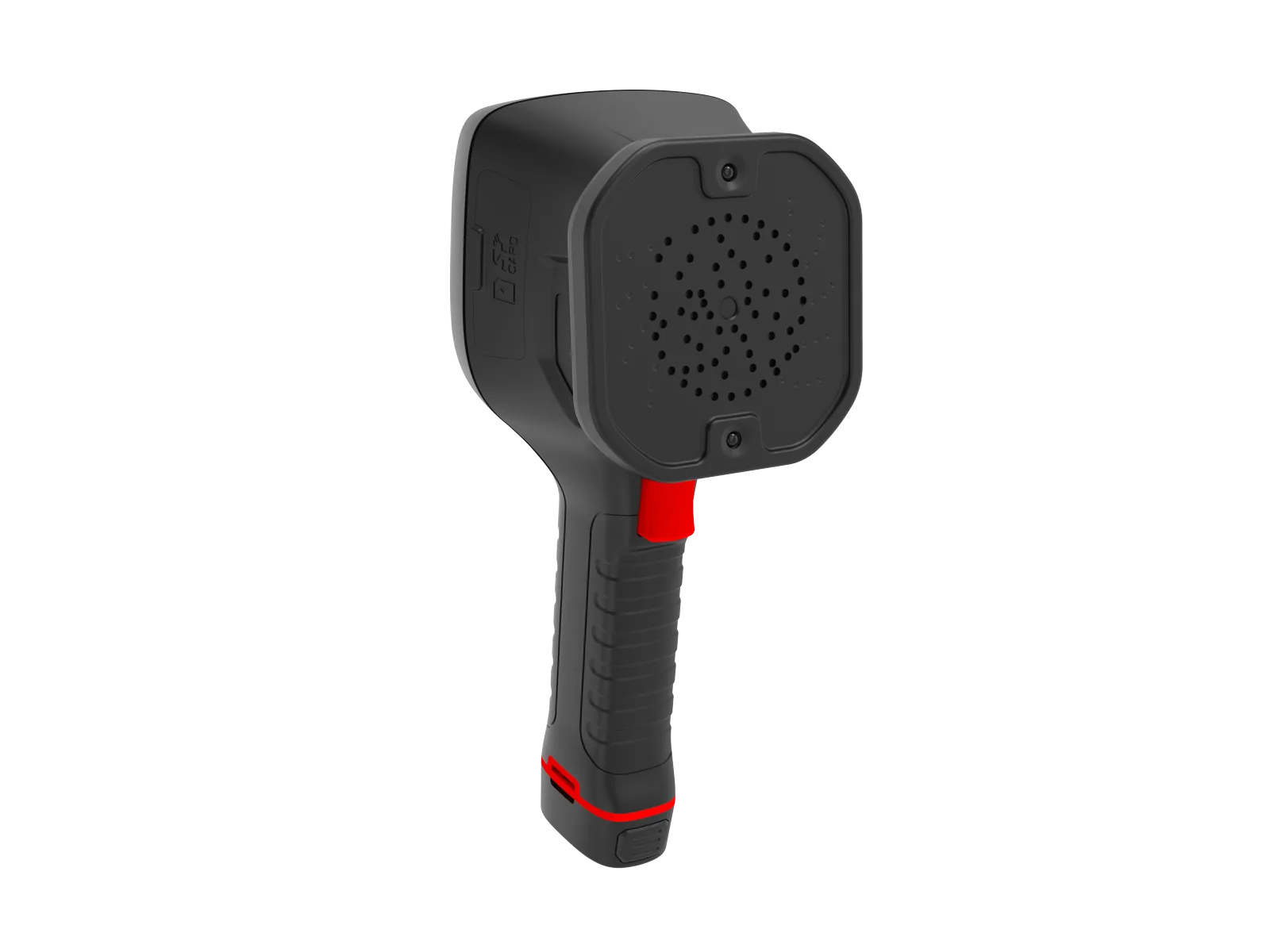

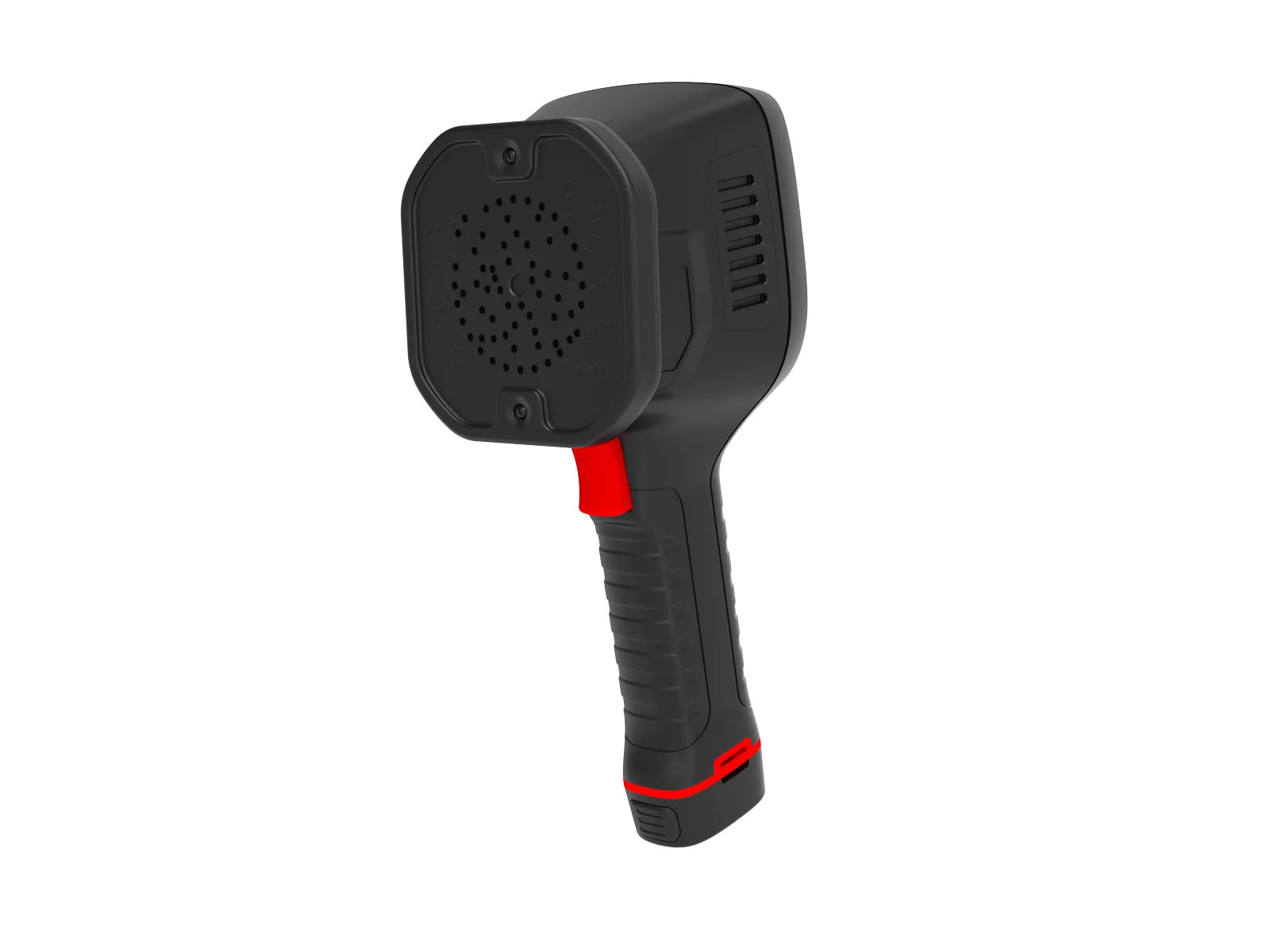

ESW64 Acoustic Camera
64-microphone acoustic camera for gas leak and partial discharge detection. Detection range 0.3–130m, IP54, WiFi/4G transmission.
Branding options: neutral packaging is available. Custom branding is subject to model, quantity and order confirmation.
- ✓ 64-mic array
- ✓ 2kHz–100kHz bandwidth
- ✓ 0.3–130m range
- ✓ WiFi & 4G transmission
- ✓ IP54 protection
- ✓ Photo & video recording
✓ Certification Documents Available
✓ Warranty Terms Confirmed by Model
✓ Ships Worldwide
✓ Selected Supply Channel
Technical Specifications
| MIC Array | 64 digital silicon MIC |
| MIC Sensitivity | -26 dBFS @1 kHz |
| Frequency Bandwidth | 2 kHz ~ 100 kHz |
| Detection Distance | 0.3 ~ 130 m |
| Image Frequency | 25 Hz |
| Max Sound Pressure Level | 120 dB |
| Min Imaging SPL | < 20 dB SPL |
| Visible Light FOV | 66° |
| Image Resolution | 800 × 480 |
| Display | 3.5-inch sunlight-readable, 640×480 |
| Storage | 32GB SD card |
| WiFi / 4G | Supported |
| Battery Type | Removable rechargeable |
| Weight | 680 g |
| Dimensions | 102 × 95 × 257 mm |
| Protection Grade | IP54 |
Applications
- Gas leak detection
- Partial discharge detection
- Compressed air leak
- Industrial inspection
- Power utilities
