Unitech Tools Series

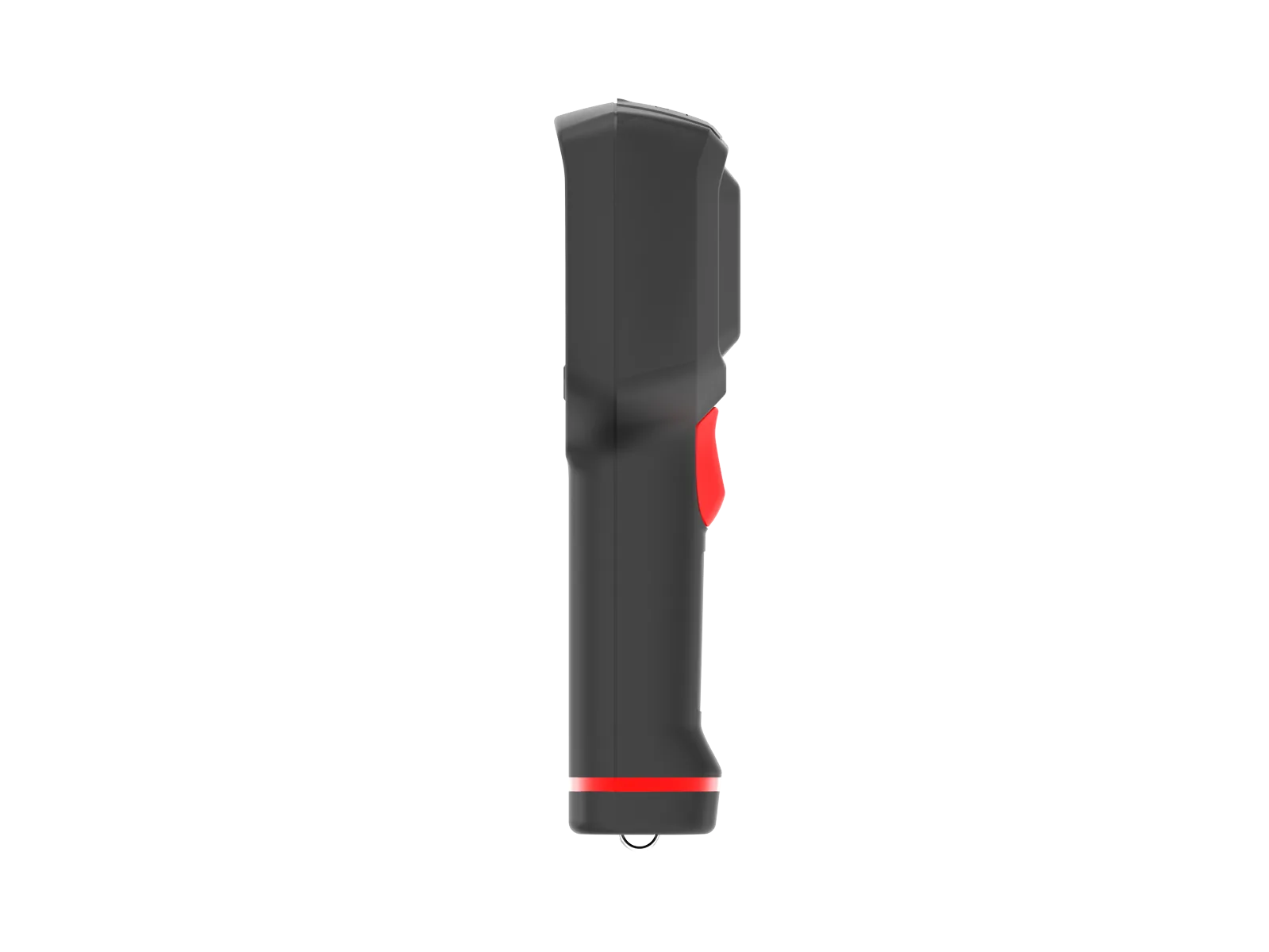

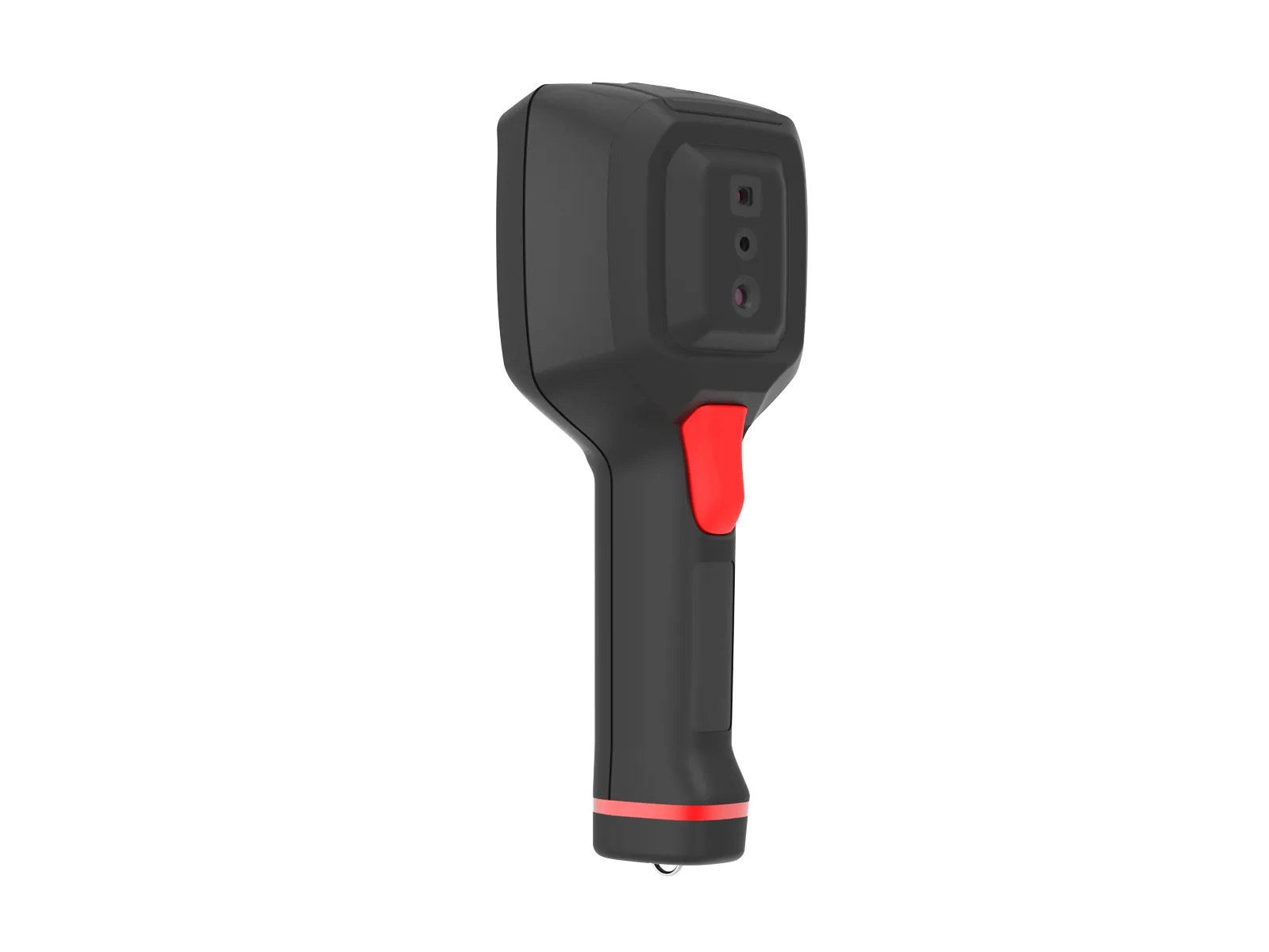

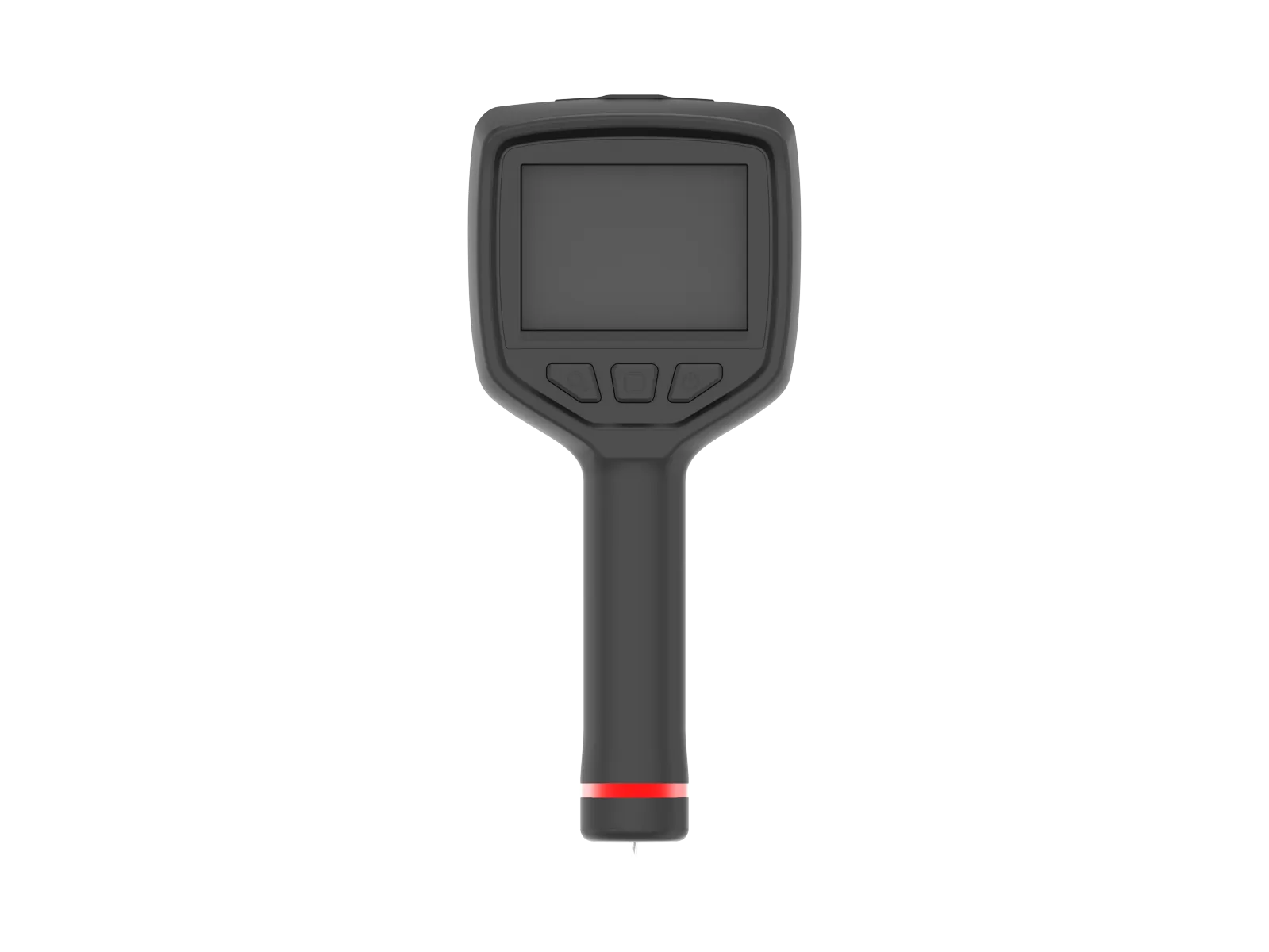

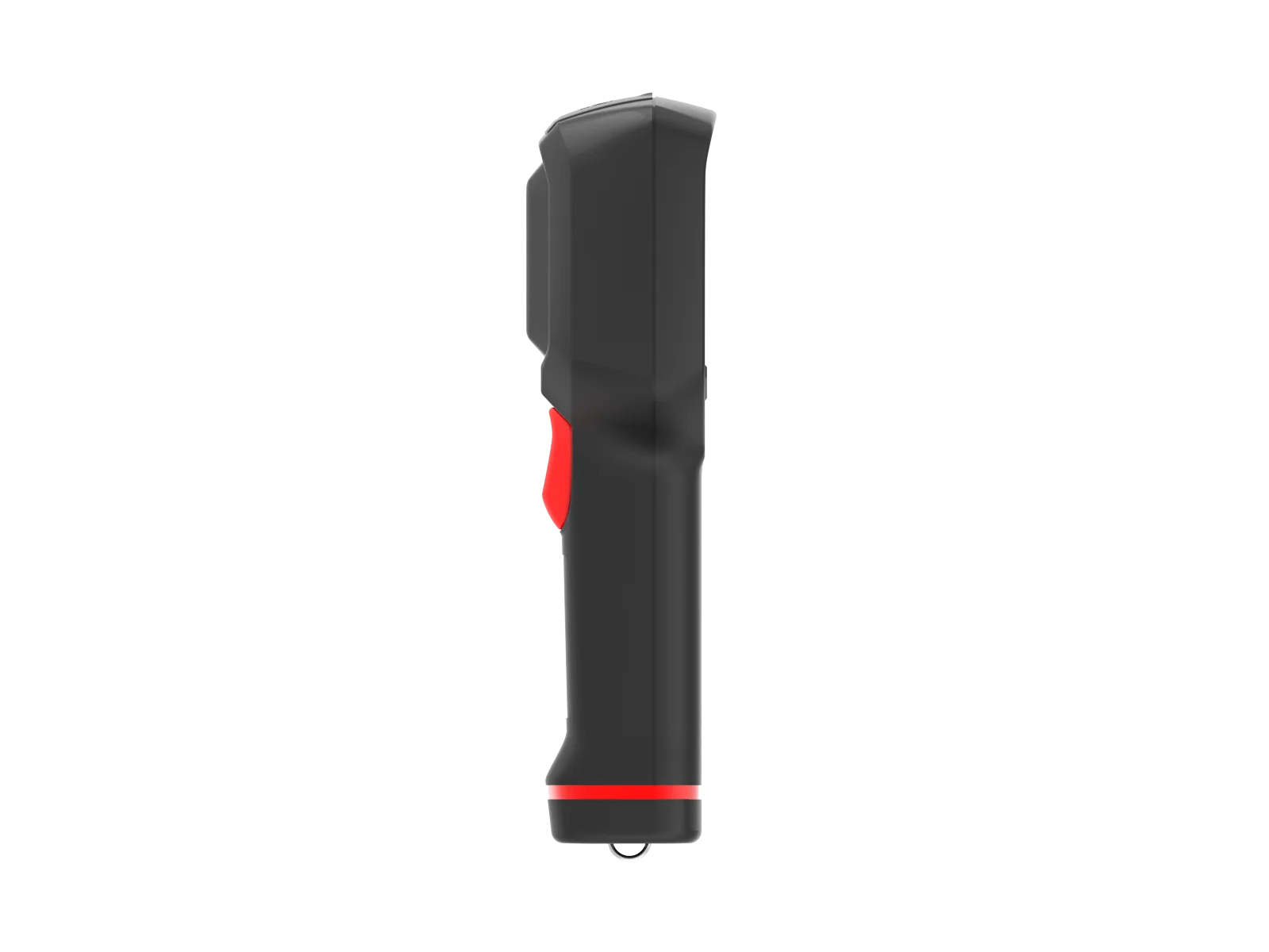

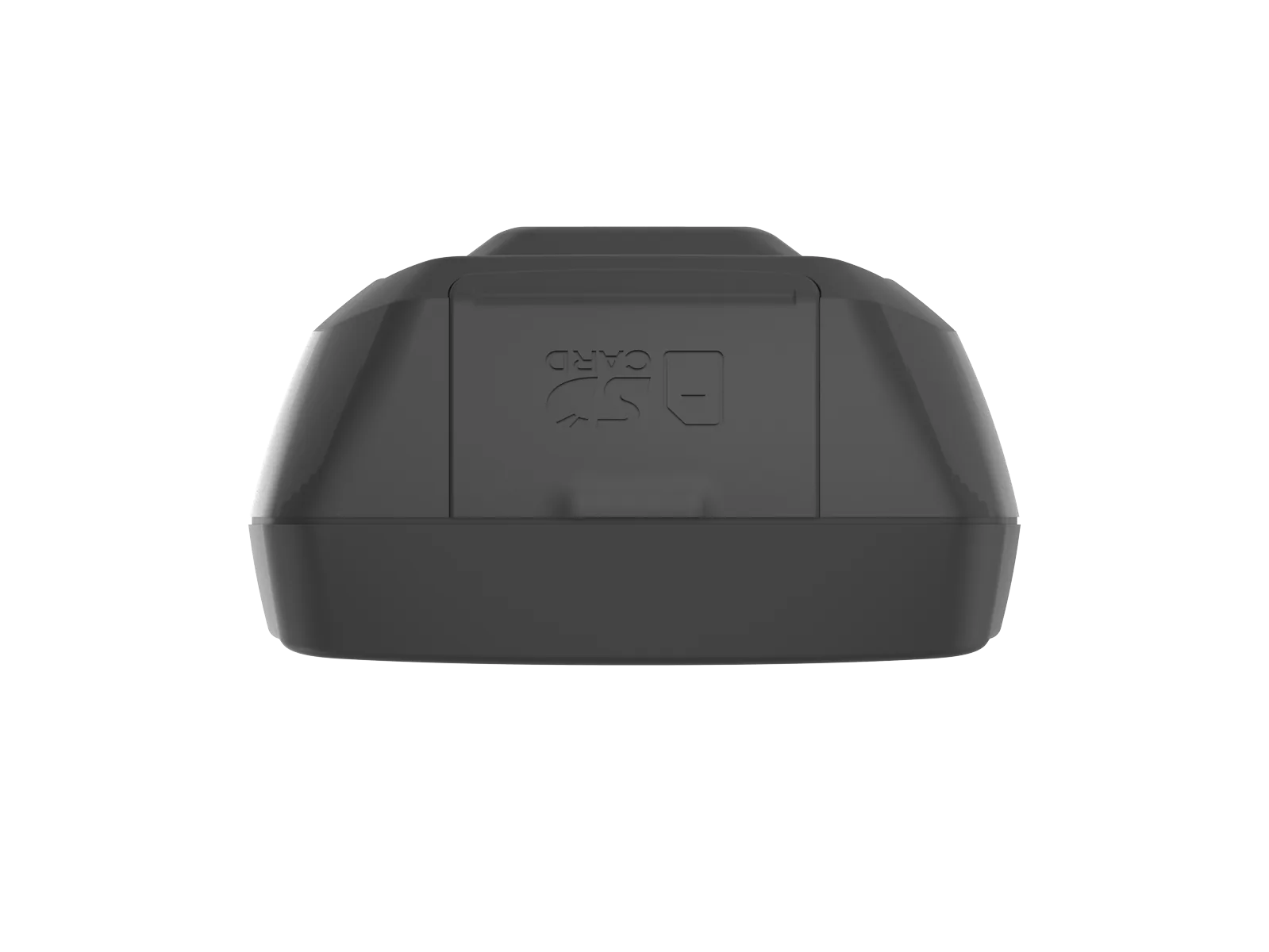

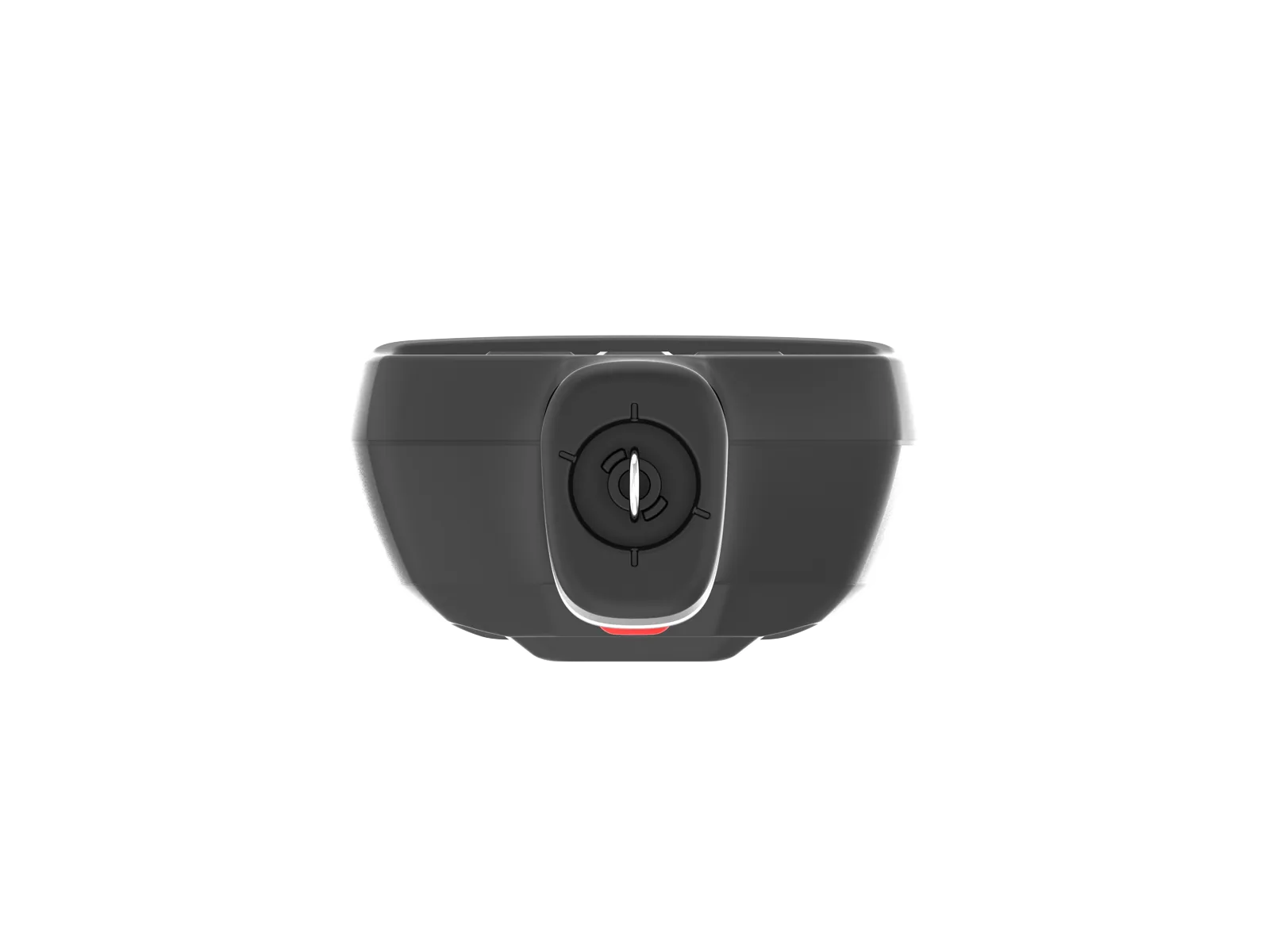

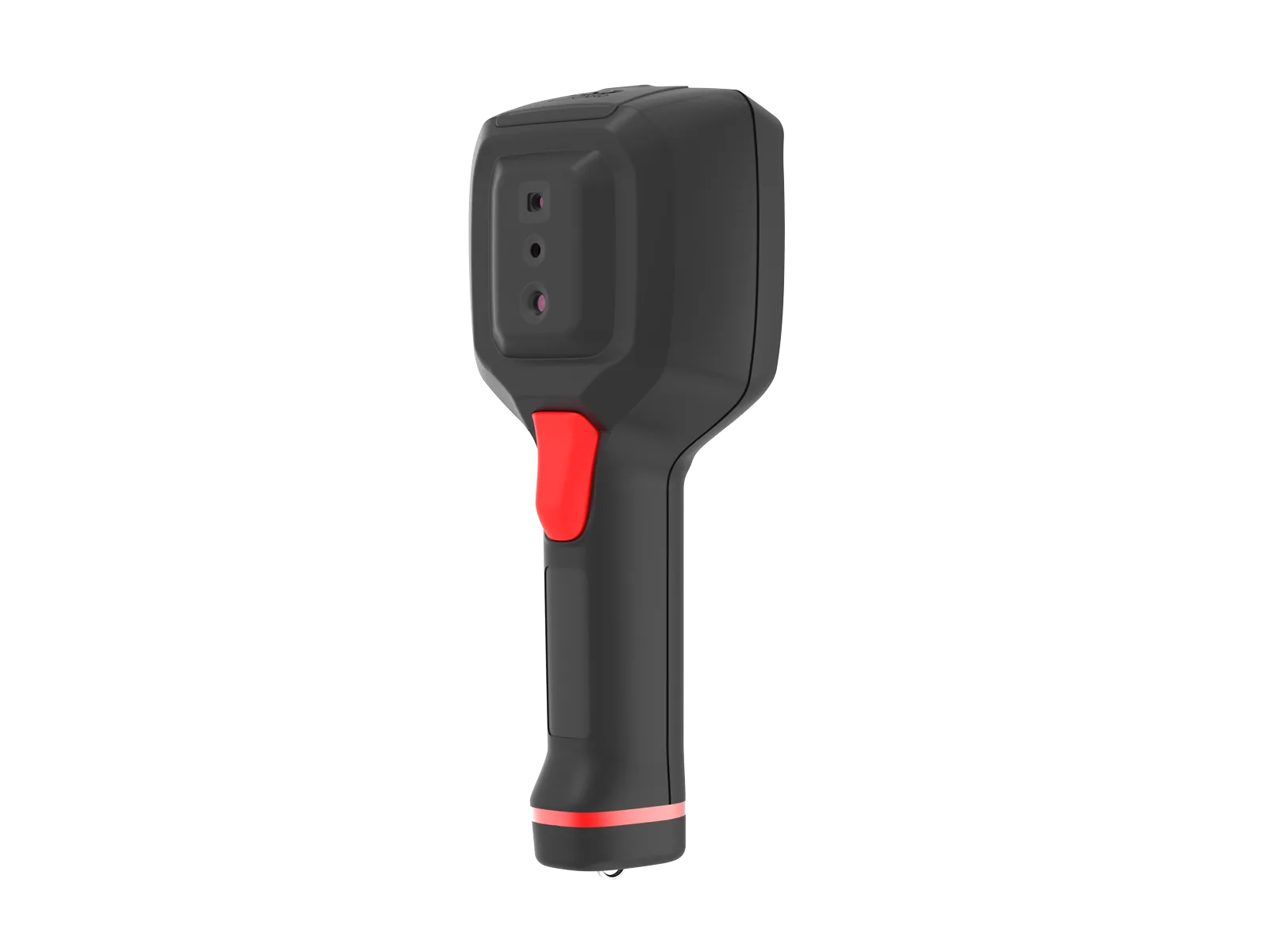

XF200-A Firefighting Camera
Lightweight firefighting thermal camera with 160×120 IR, IP67 protection, 2m drop resistance, and 4-hour battery life for fire scene navigation.
Branding options: neutral packaging is available. Custom branding is subject to model, quantity and order confirmation.
- ✓ IP67 waterproof & dustproof
- ✓ 2m drop resistance
- ✓ Withstands 260°C environment
- ✓ Lightweight 0.6kg
- ✓ 4-hour battery
- ✓ WiFi & 4G transmission
✓ Certification Documents Available
✓ Warranty Terms Confirmed by Model
✓ Ships Worldwide
✓ Selected Supply Channel
Technical Specifications
| Detector Type | Uncooled FPA, VOX |
| IR Resolution | 160 × 120 |
| Thermal Sensitivity (NETD) | ≤ 50mK (@25°C) |
| Spectral Range | 7.5 ~ 14 μm |
| Field of View | 56° × 42.2° |
| Focus | Fixed |
| Display | 3.5-inch sunlight-readable, 320×240 |
| Temperature Range | -20°C ~ +650°C (auto switching) |
| Temperature Accuracy | ±2°C or 2% of readings |
| Visible Camera | 5MP |
| WiFi / 4G | Supported |
| Battery Life | > 4 hours |
| Weight | 0.6 kg (with battery) |
| Dimensions | 238 × 106 × 60 mm |
| Protection Level | IP67 |
| Drop Resistance | 2 m |
| High Temp Operation | 80°C: 30min / 120°C: 10min / 260°C: 5min |
Applications
- Firefighting navigation
- Search & rescue
- Industrial fire prevention
- Emergency response
- Hazmat inspection
