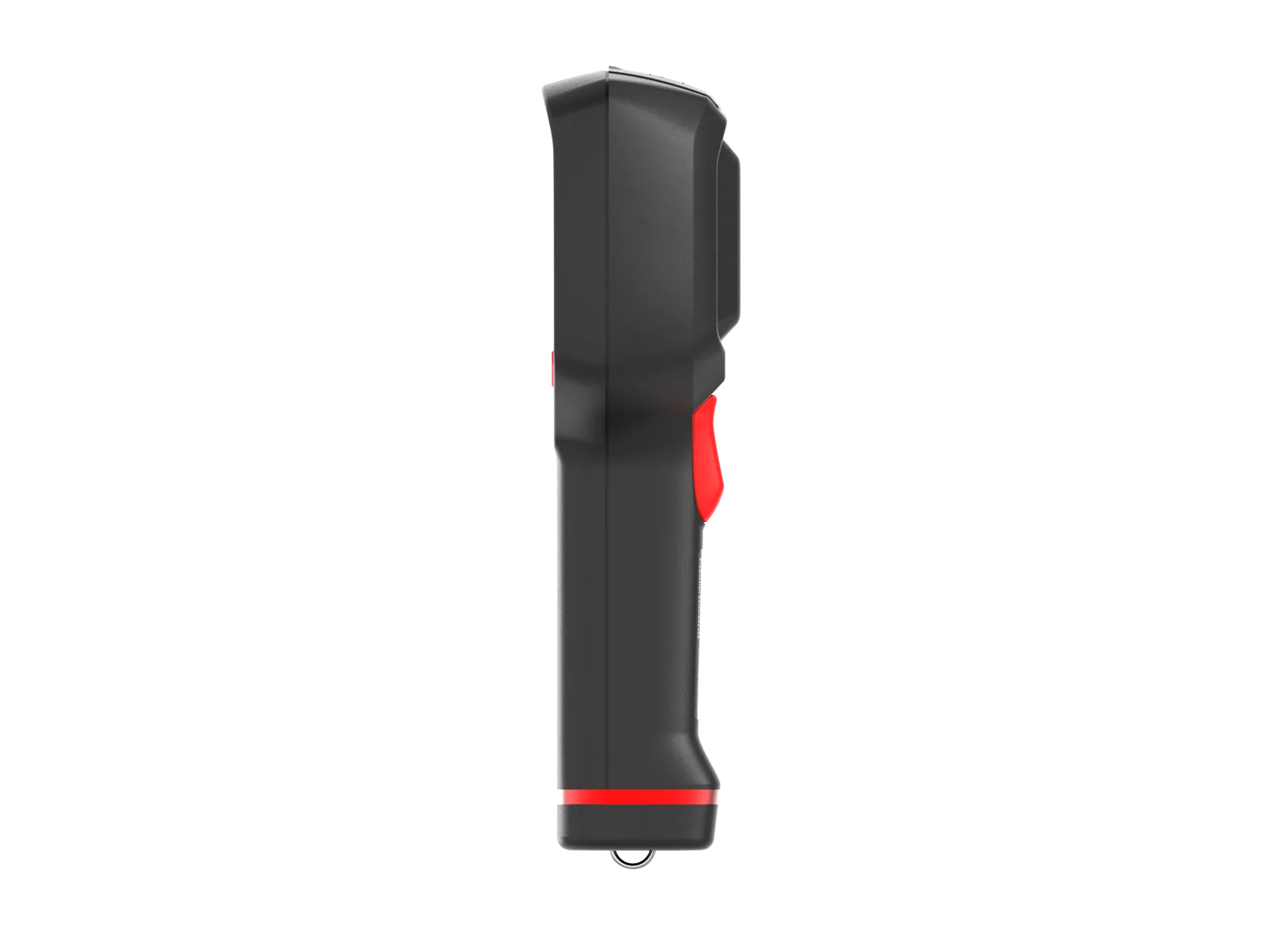

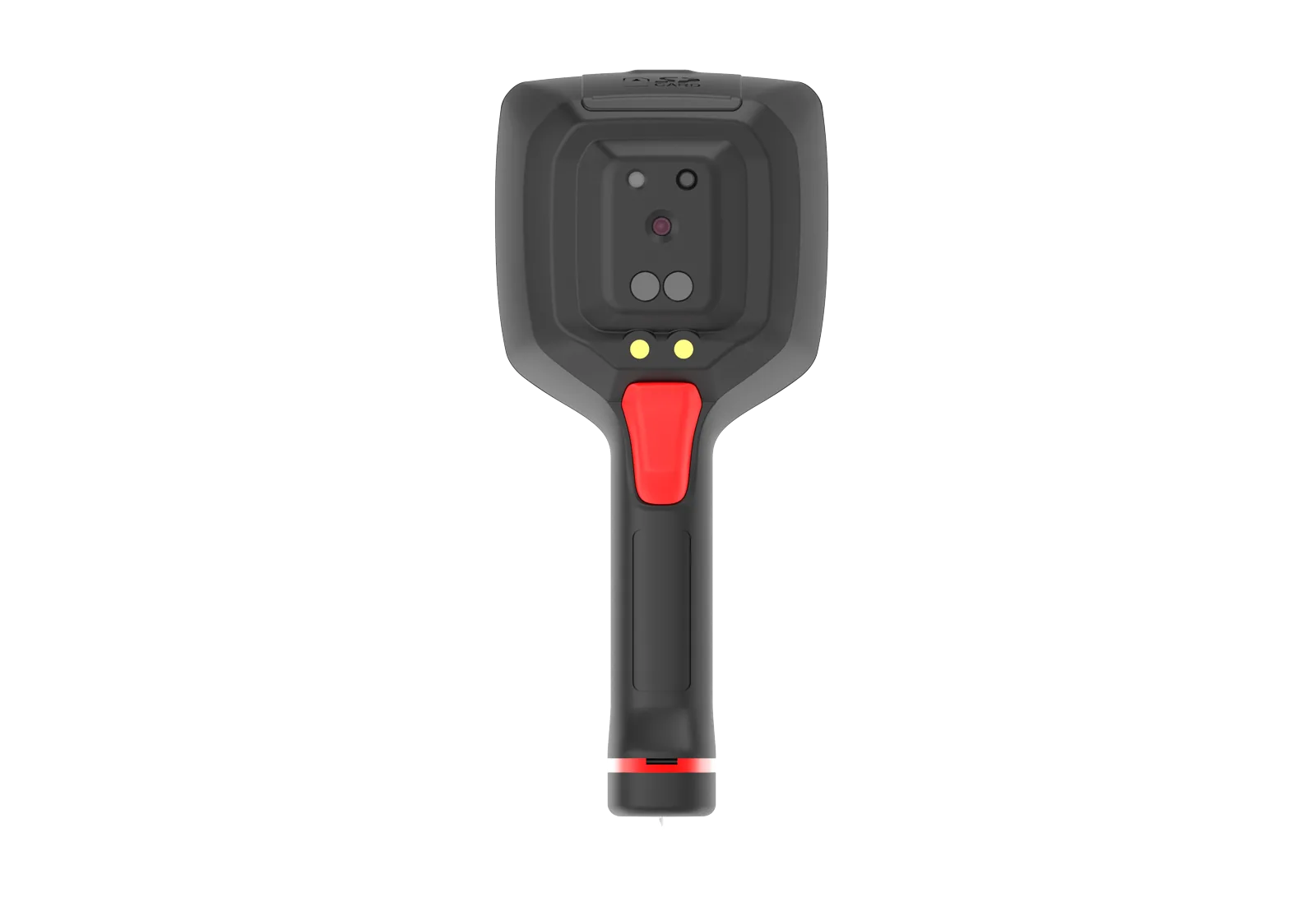

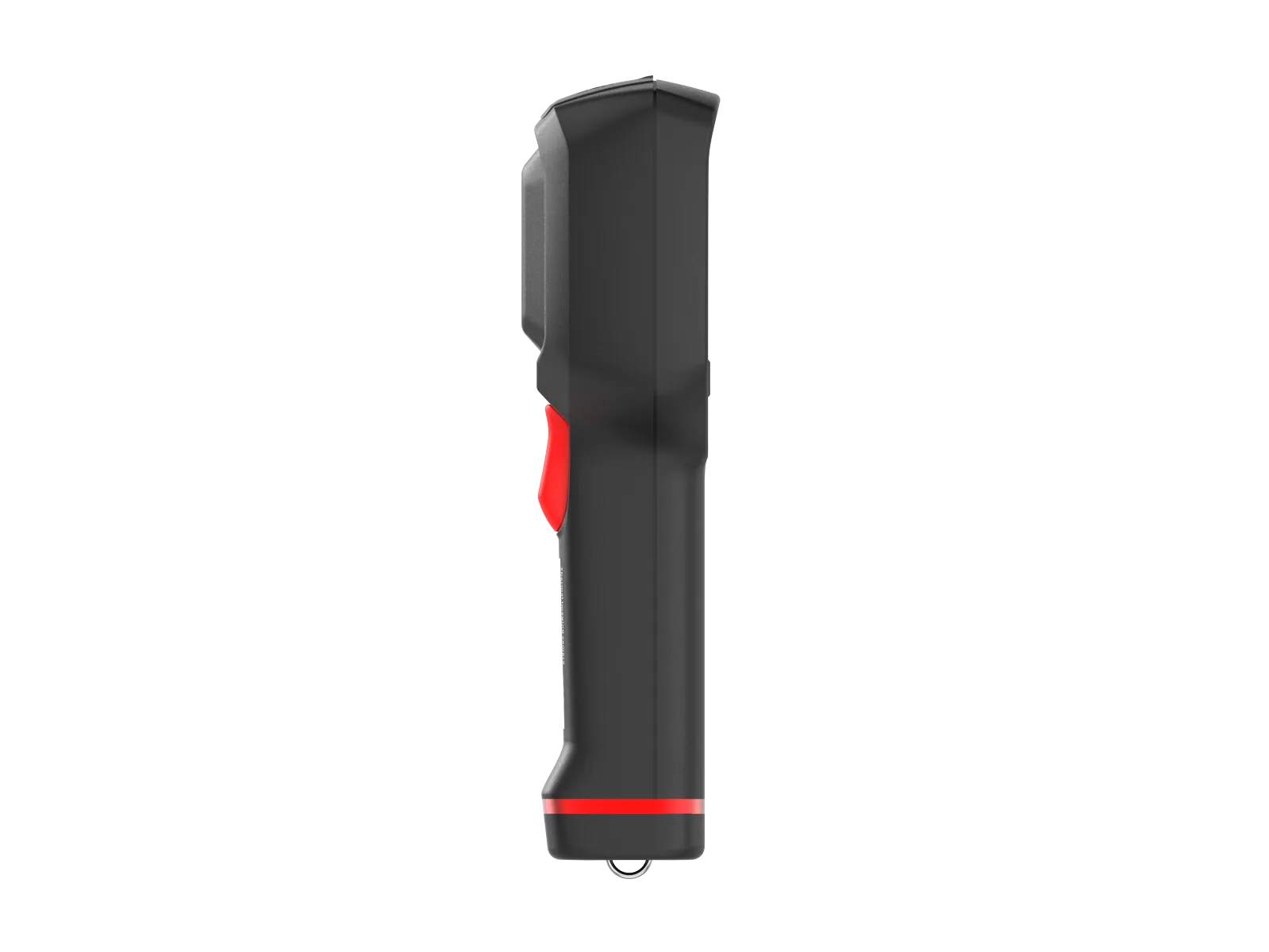

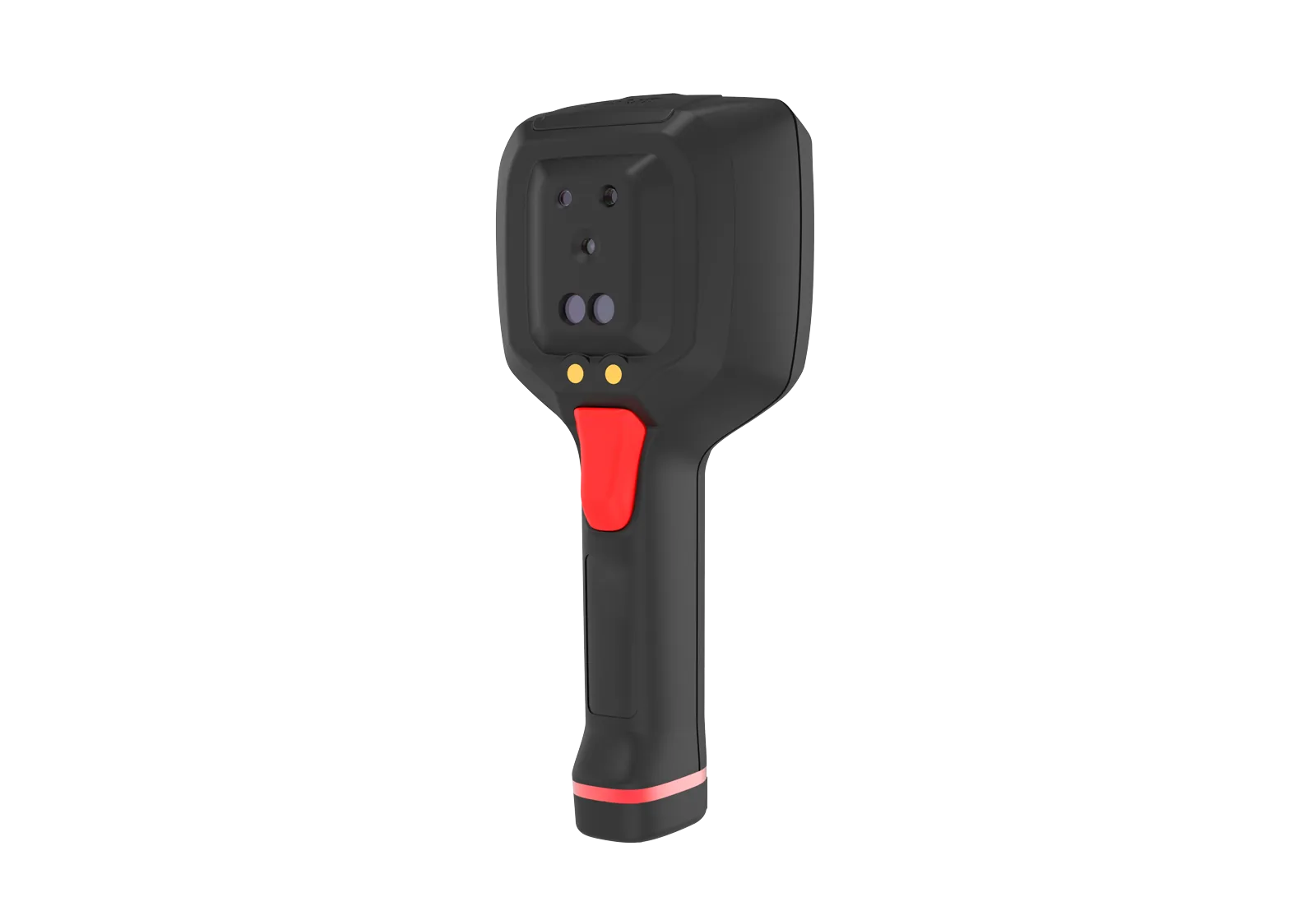

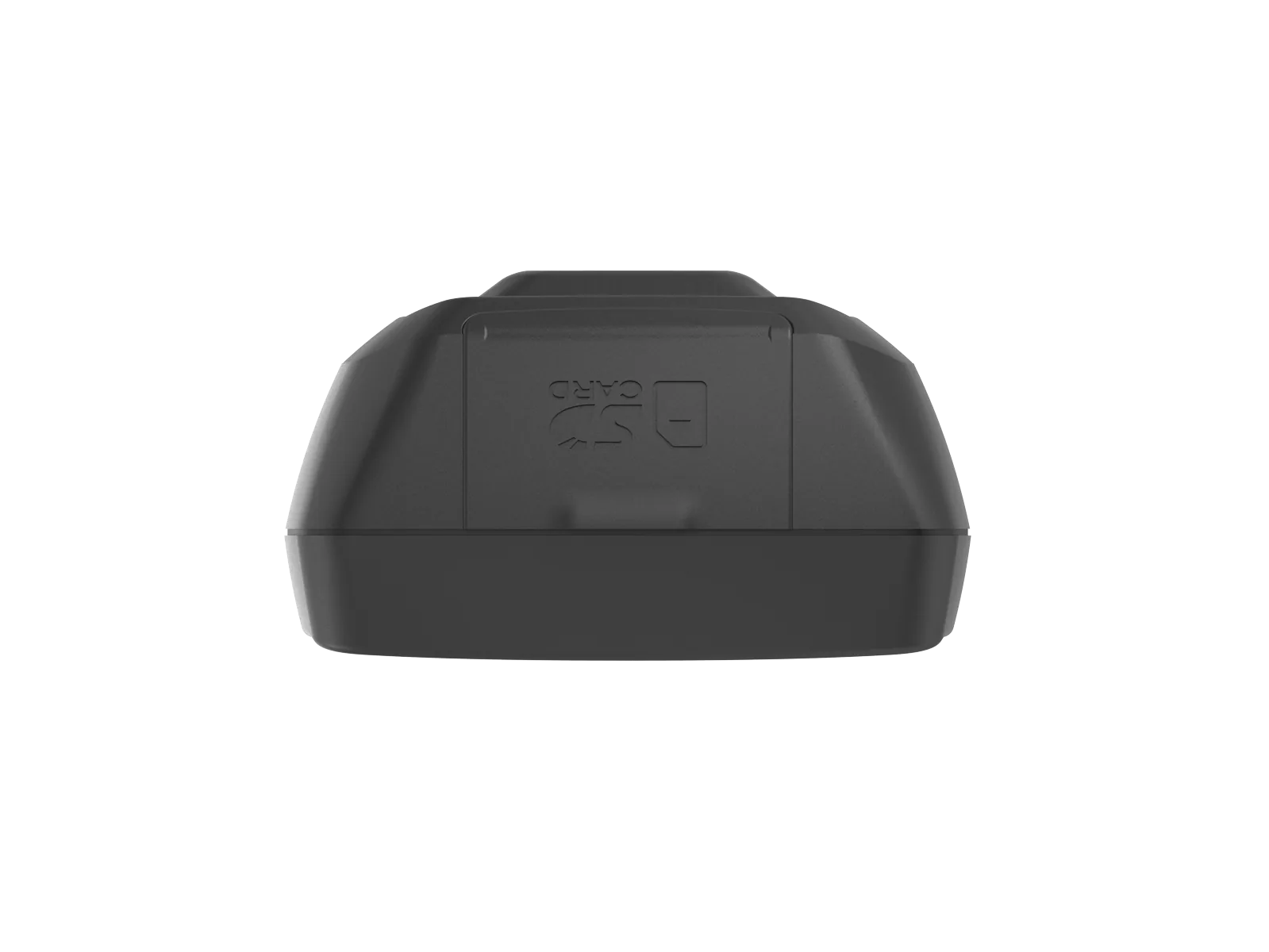

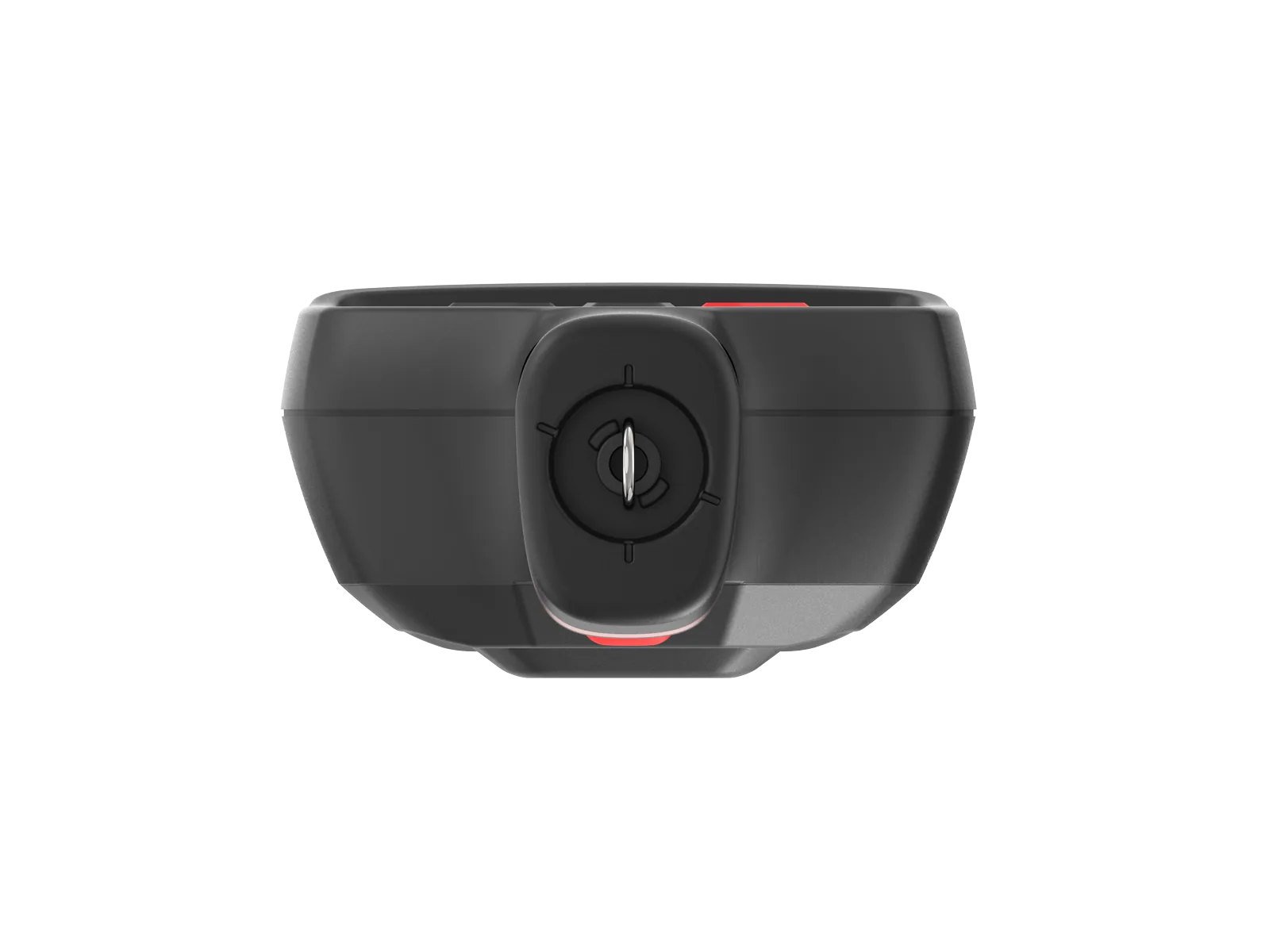

XF200-B Firefighting Camera
Enhanced firefighting thermal camera with 256×192 IR resolution, IP67 protection, 2m drop resistance, and improved image clarity for fire scene use.
Branding options: neutral packaging is available. Custom branding is subject to model, quantity and order confirmation.
- ✓ 256×192 enhanced resolution
- ✓ IP67 waterproof & dustproof
- ✓ 2m drop resistance
- ✓ Lightweight 0.6kg
- ✓ 3-button simple operation
- ✓ Dual-mode imaging
✓ Certification Documents Available
✓ Warranty Terms Confirmed by Model
✓ Ships Worldwide
✓ Selected Supply Channel
Technical Specifications
| Detector Type | Uncooled FPA, VOX |
| IR Resolution | 256 × 192 |
| Thermal Sensitivity (NETD) | ≤ 50mK (@25°C) |
| Spectral Range | 7.5 ~ 14 μm |
| Field of View | 56° × 42.2° |
| IFOV | 3.82 mrad |
| Focus | Fixed |
| Display | 3.5-inch sunlight-readable, 320×240 |
| Temperature Range | -20°C ~ +650°C |
| Temperature Accuracy | ±2°C or 2% of readings |
| Visible Camera | 5MP |
| Weight | 0.6 kg (with battery) |
| Dimensions | 238 × 106 × 60 mm |
| Protection Level | IP67 |
| Drop Resistance | 2 m |
| Operating Temperature | -20°C ~ 55°C |
Applications
- Firefighting navigation
- Search & rescue
- Industrial fire prevention
- Emergency response
- Structural fire inspection
Ready to Order?
Contact us for pricing, bulk discounts, and shipping to your country. We ship to Latin America, Africa, Australia, and worldwide.
