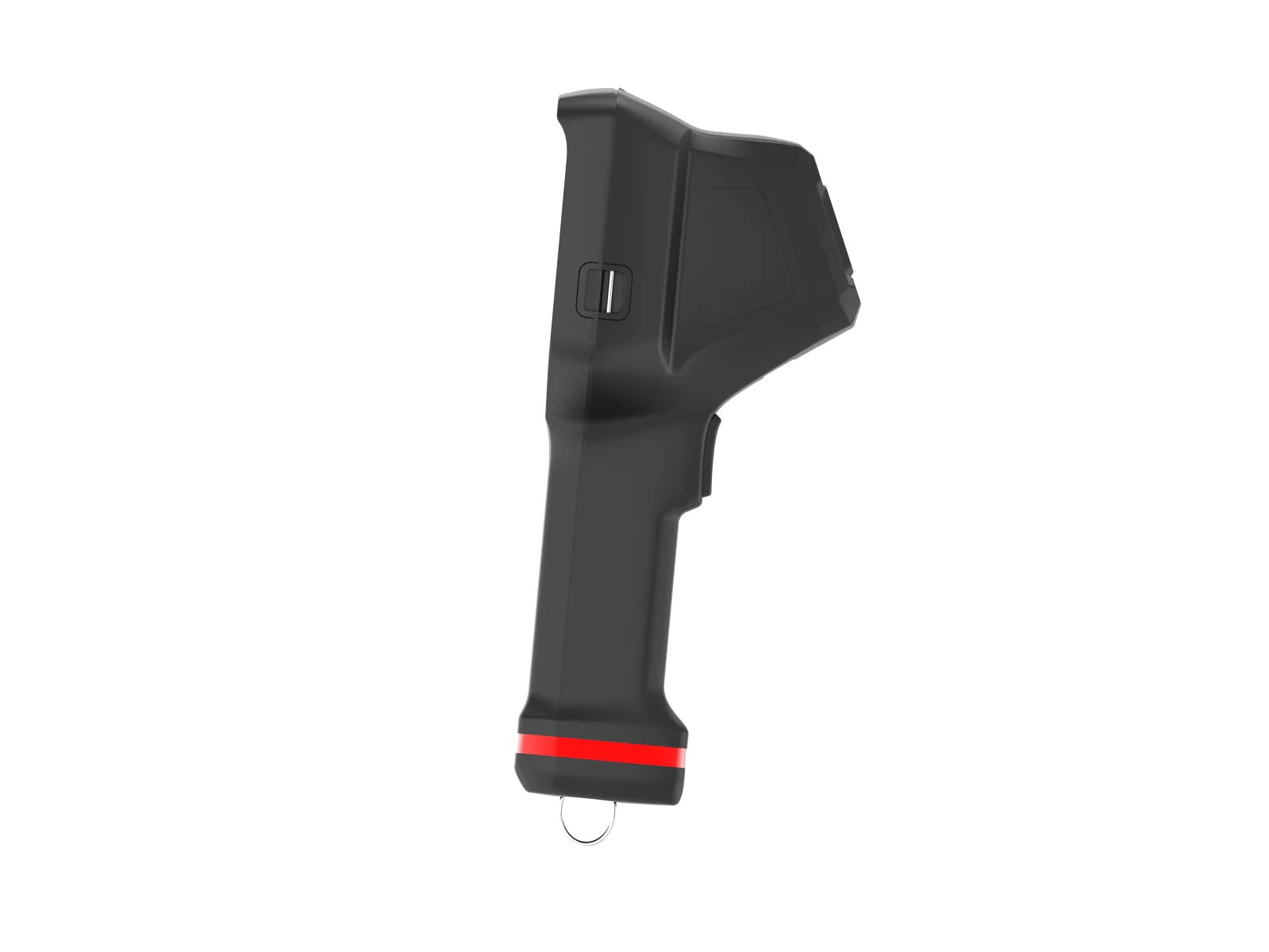

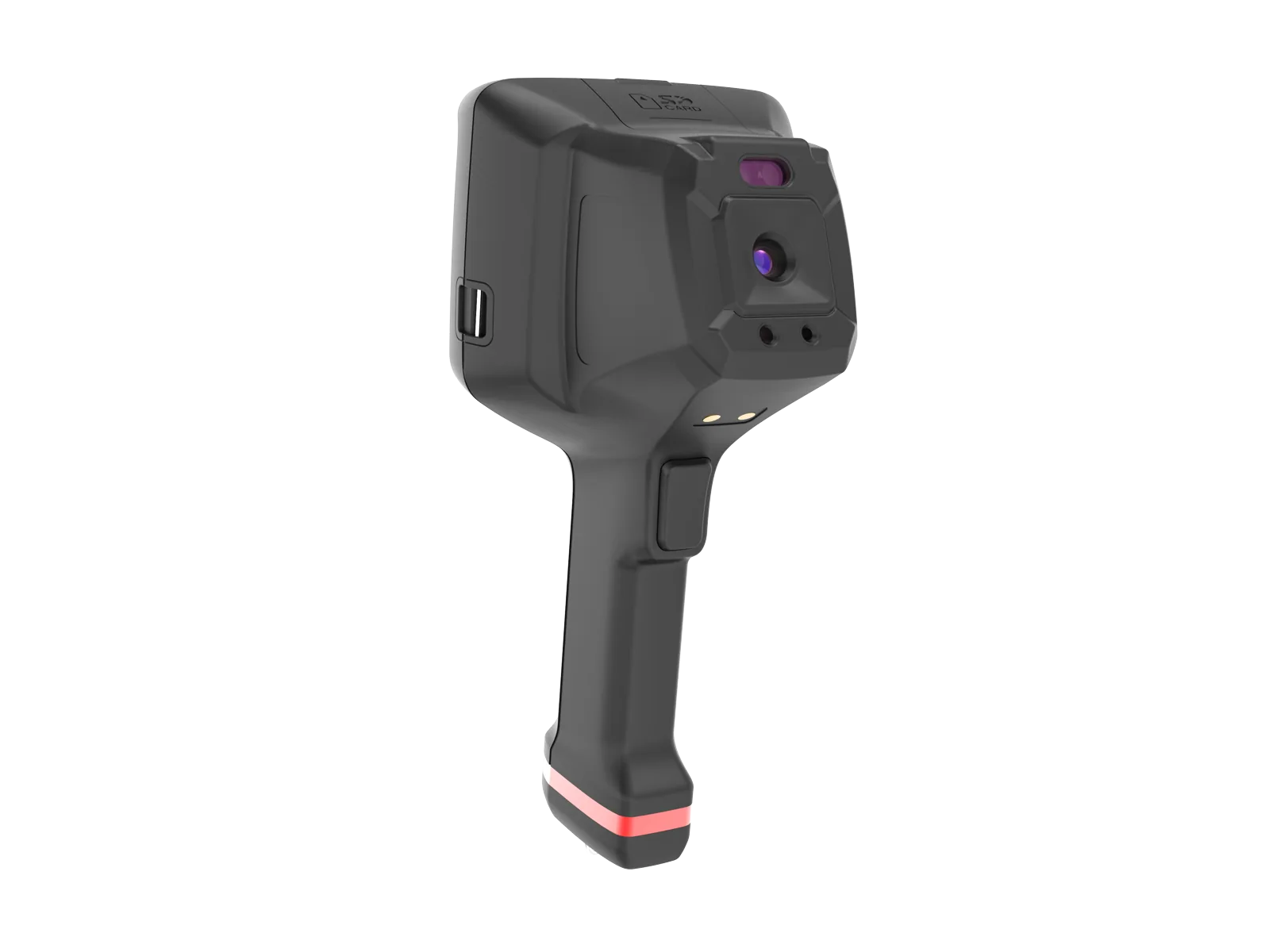

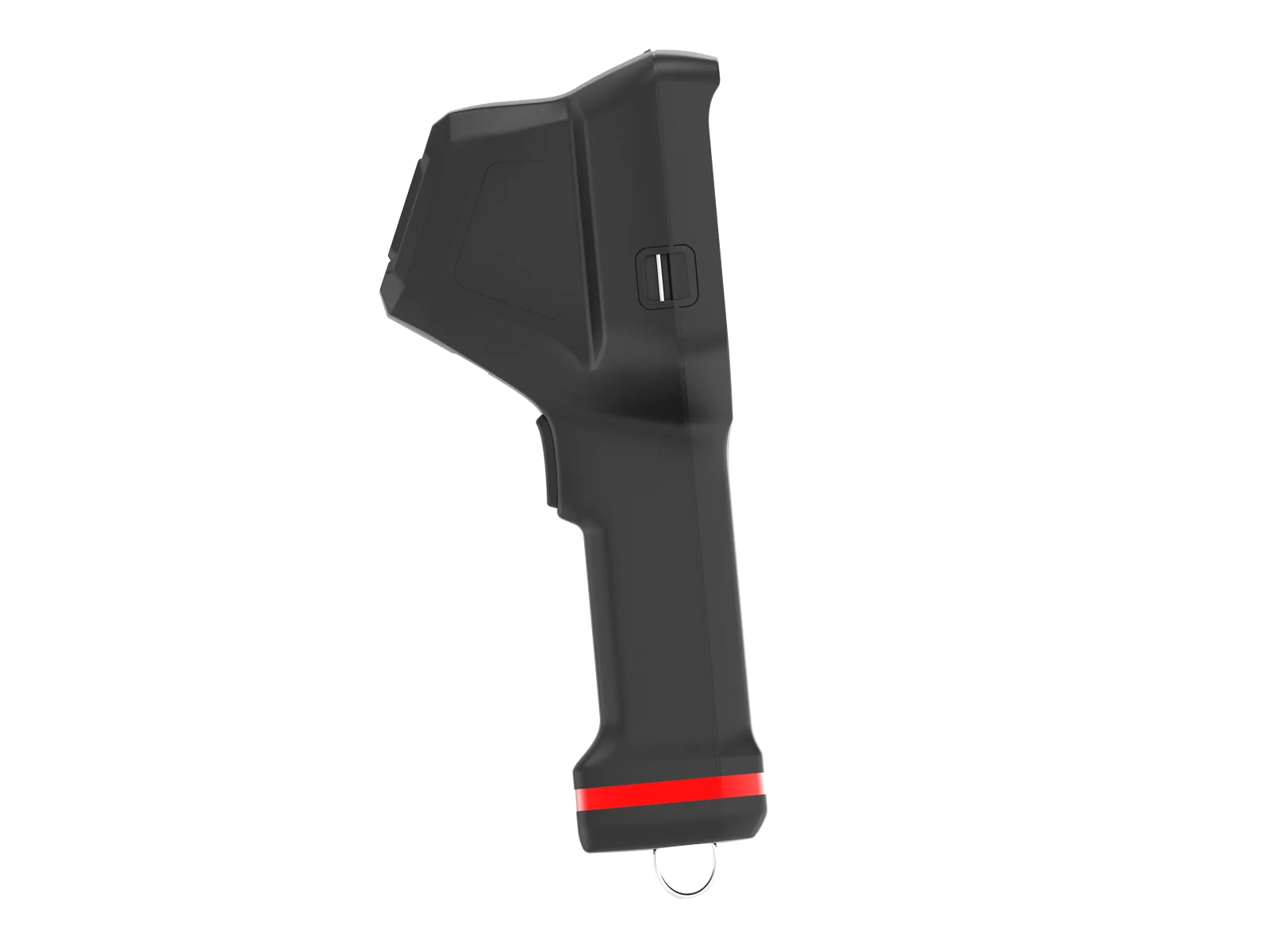

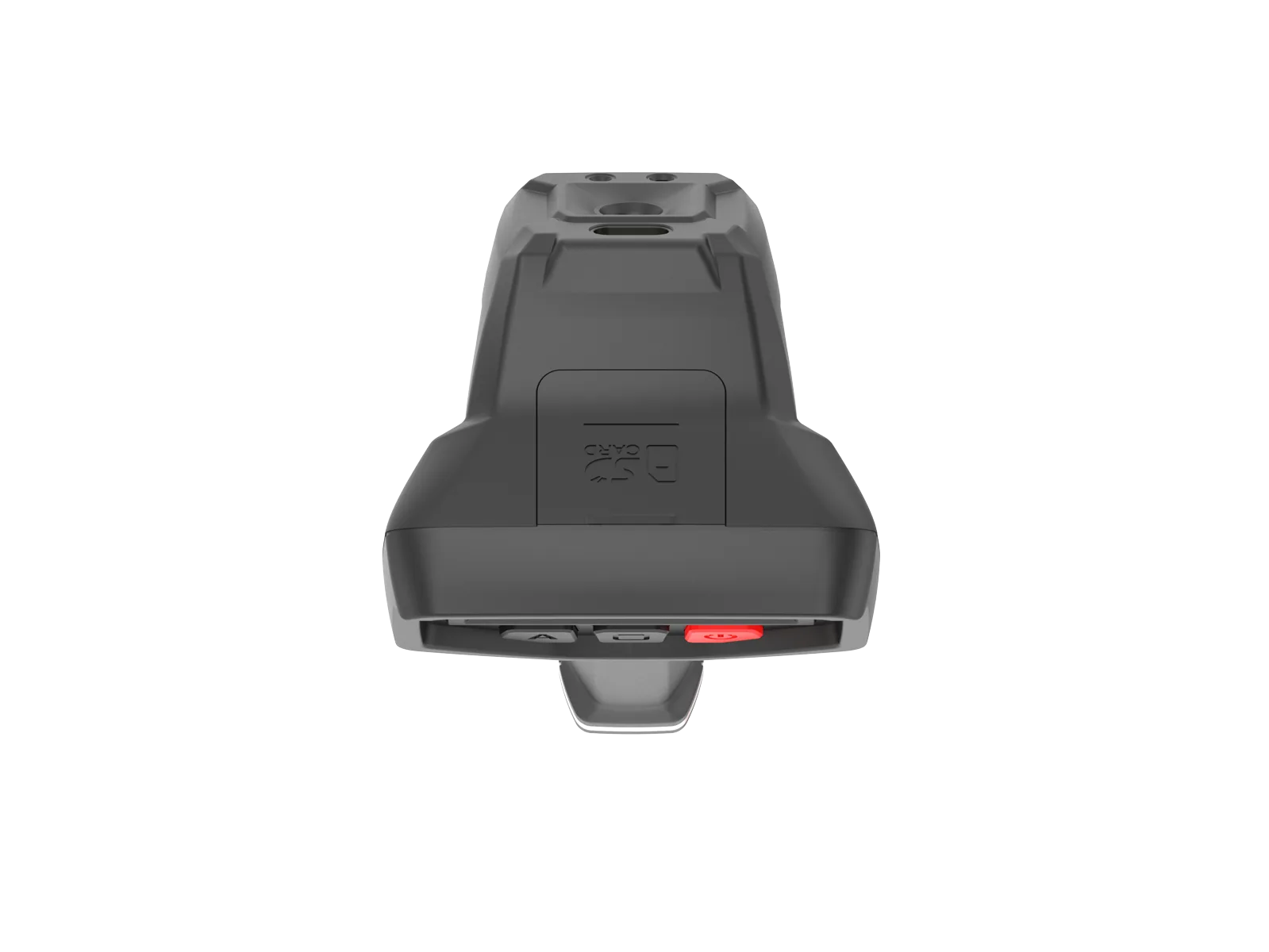

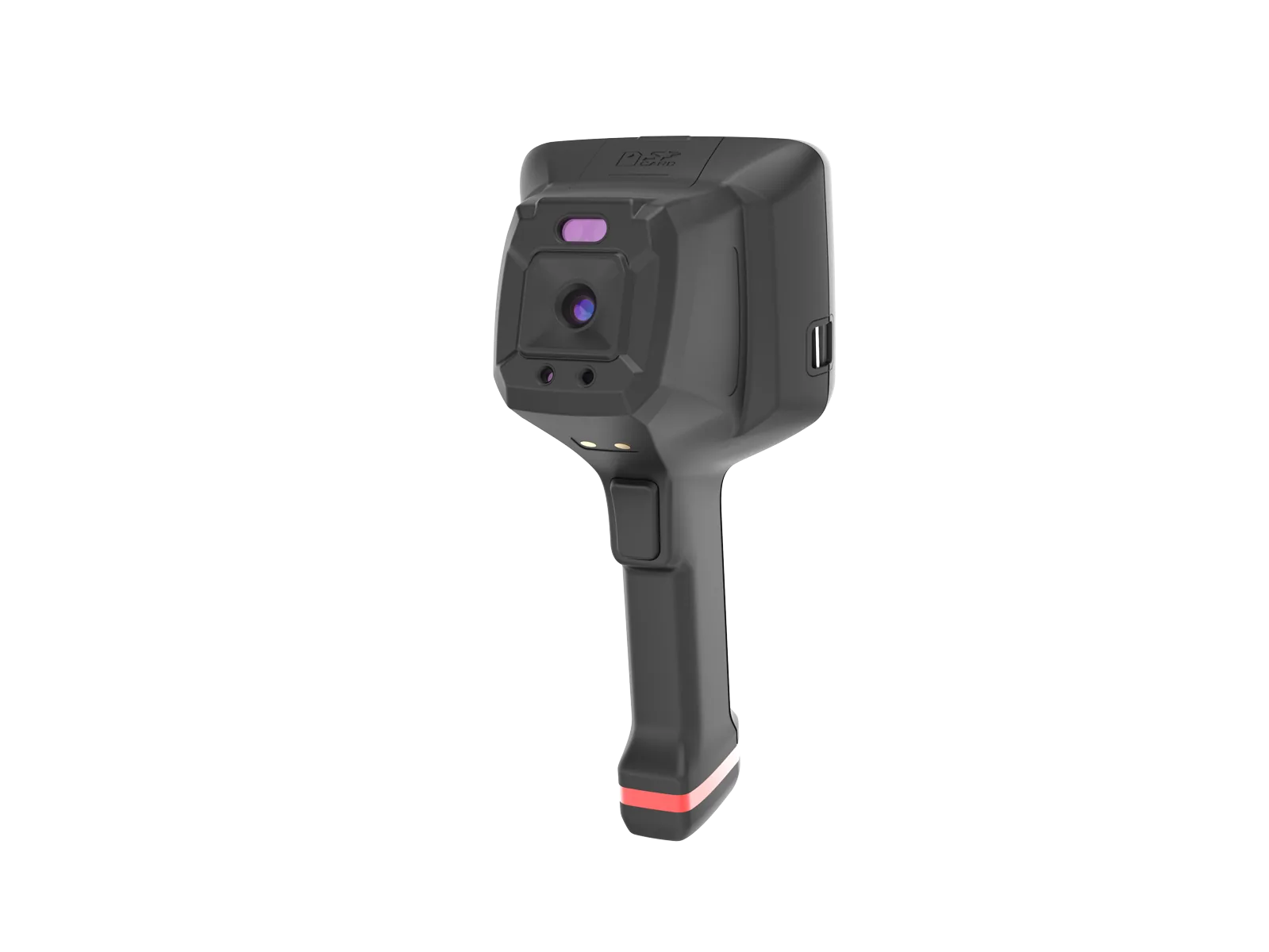

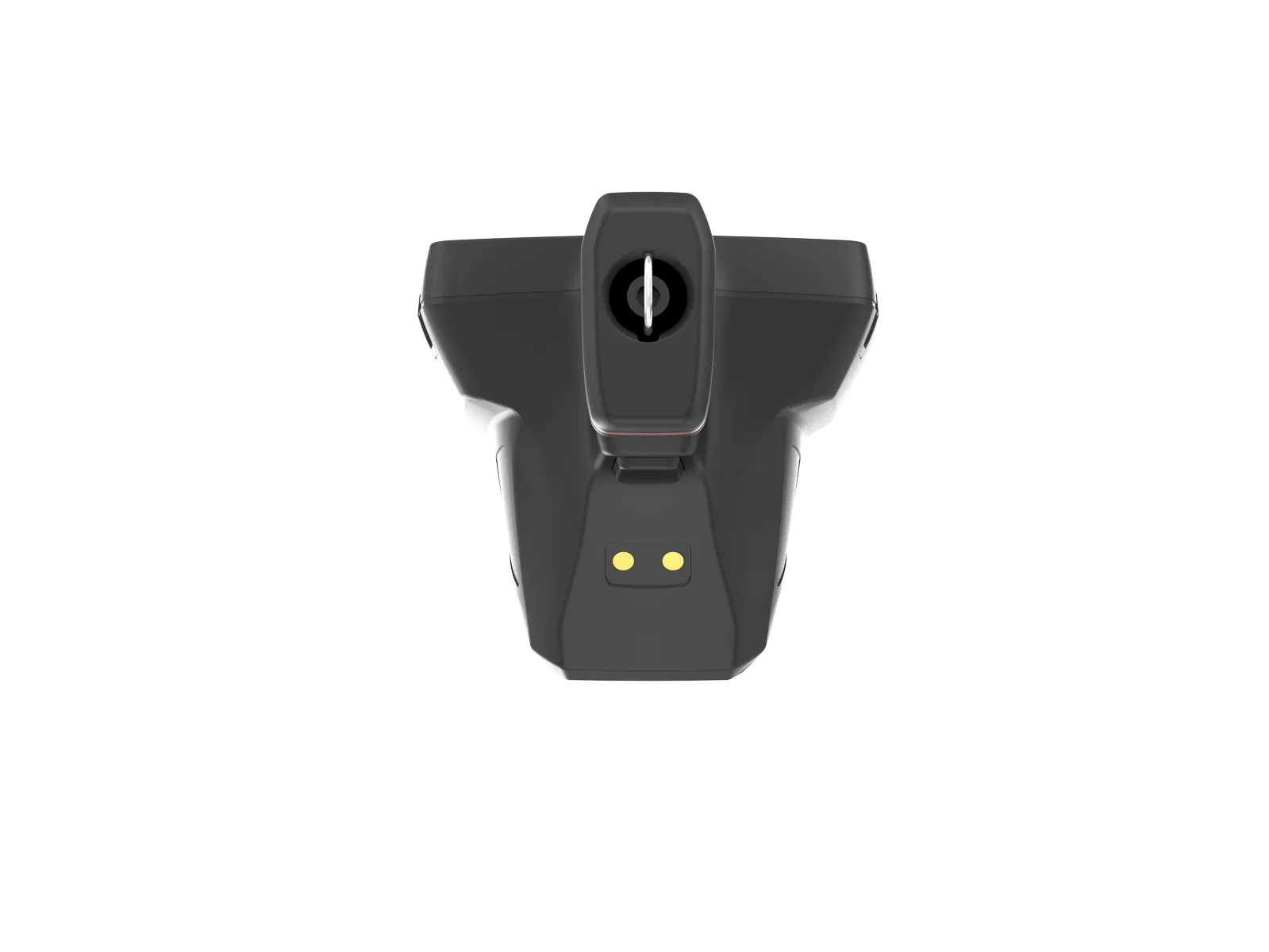

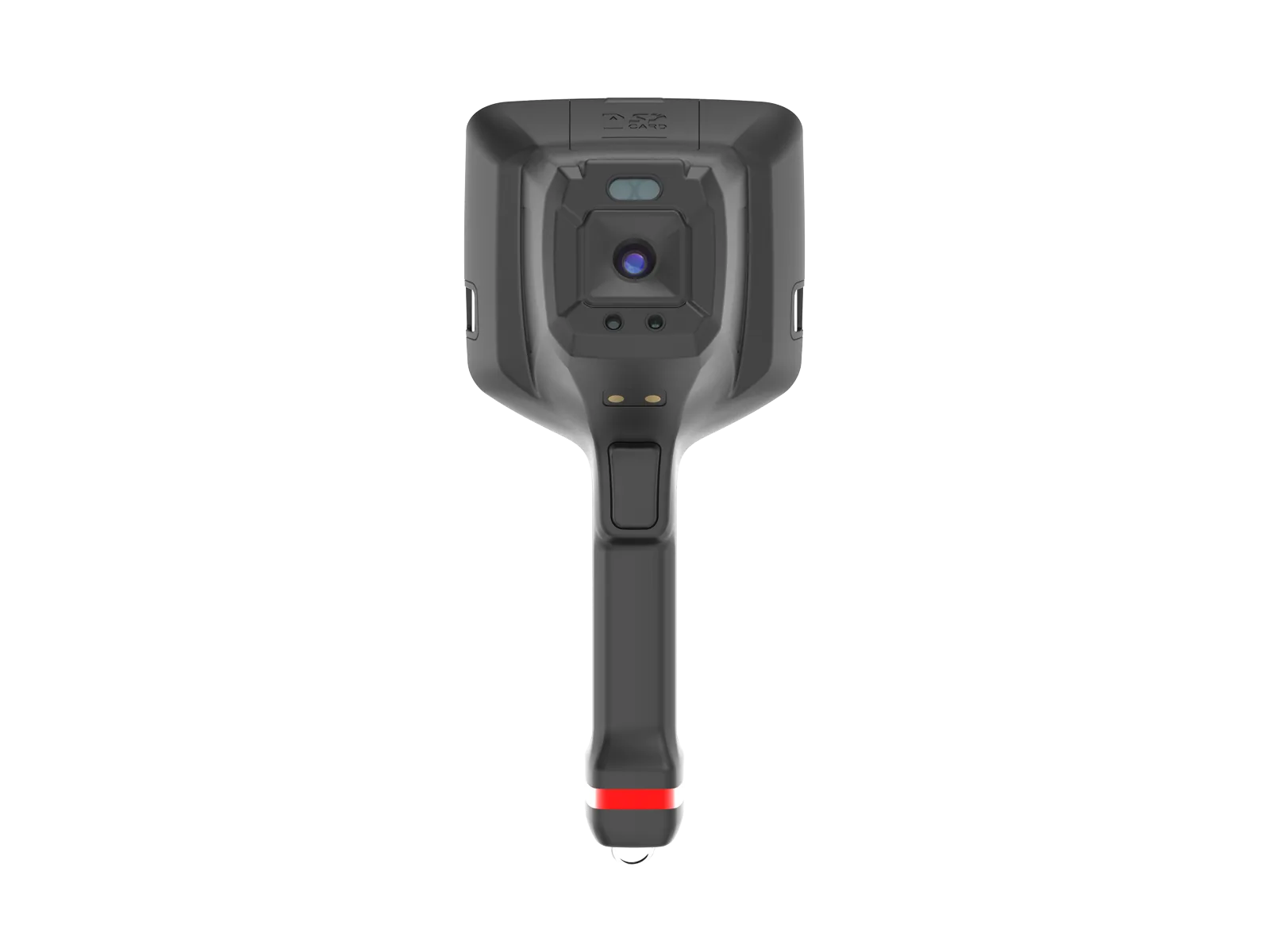

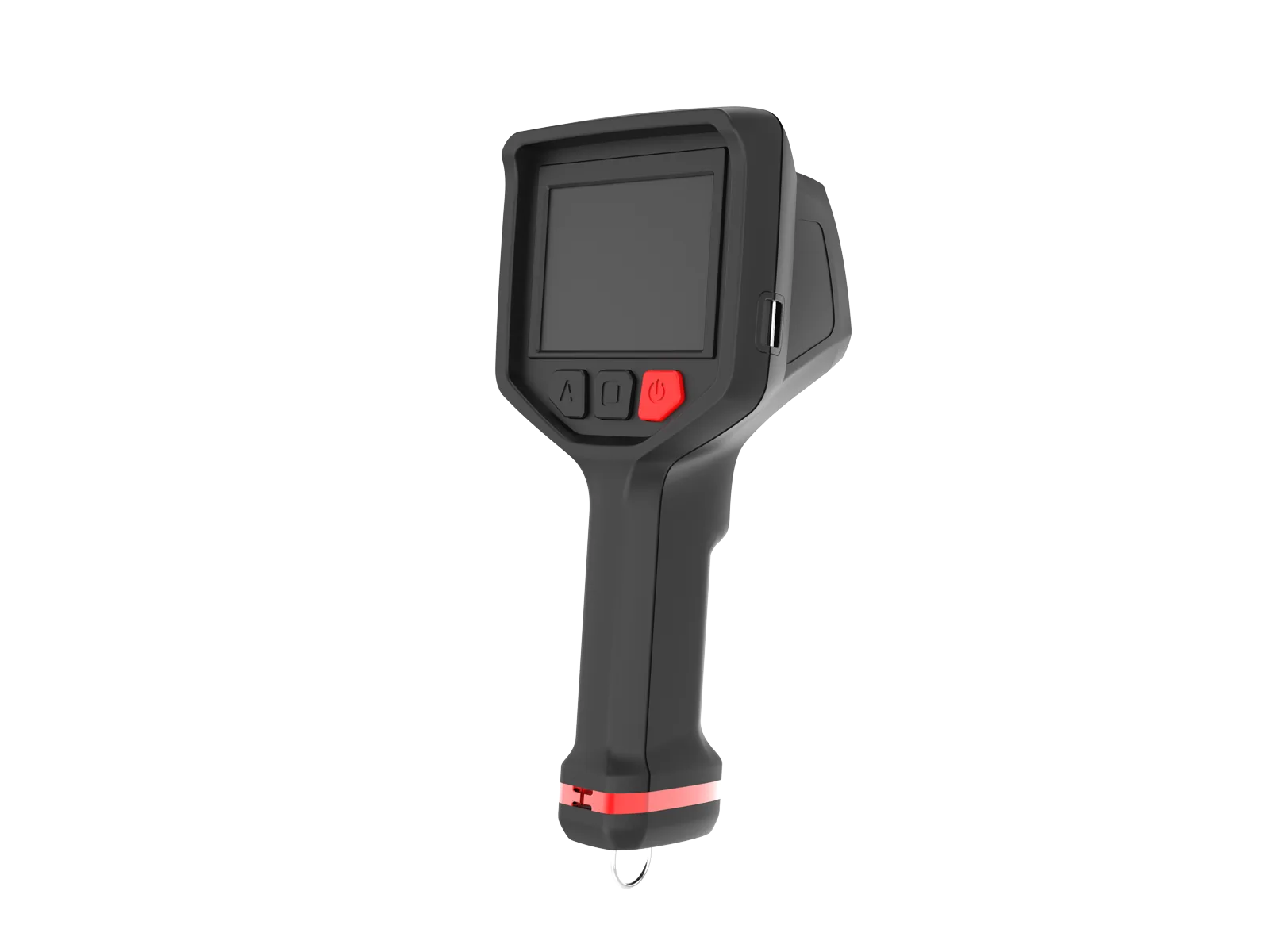

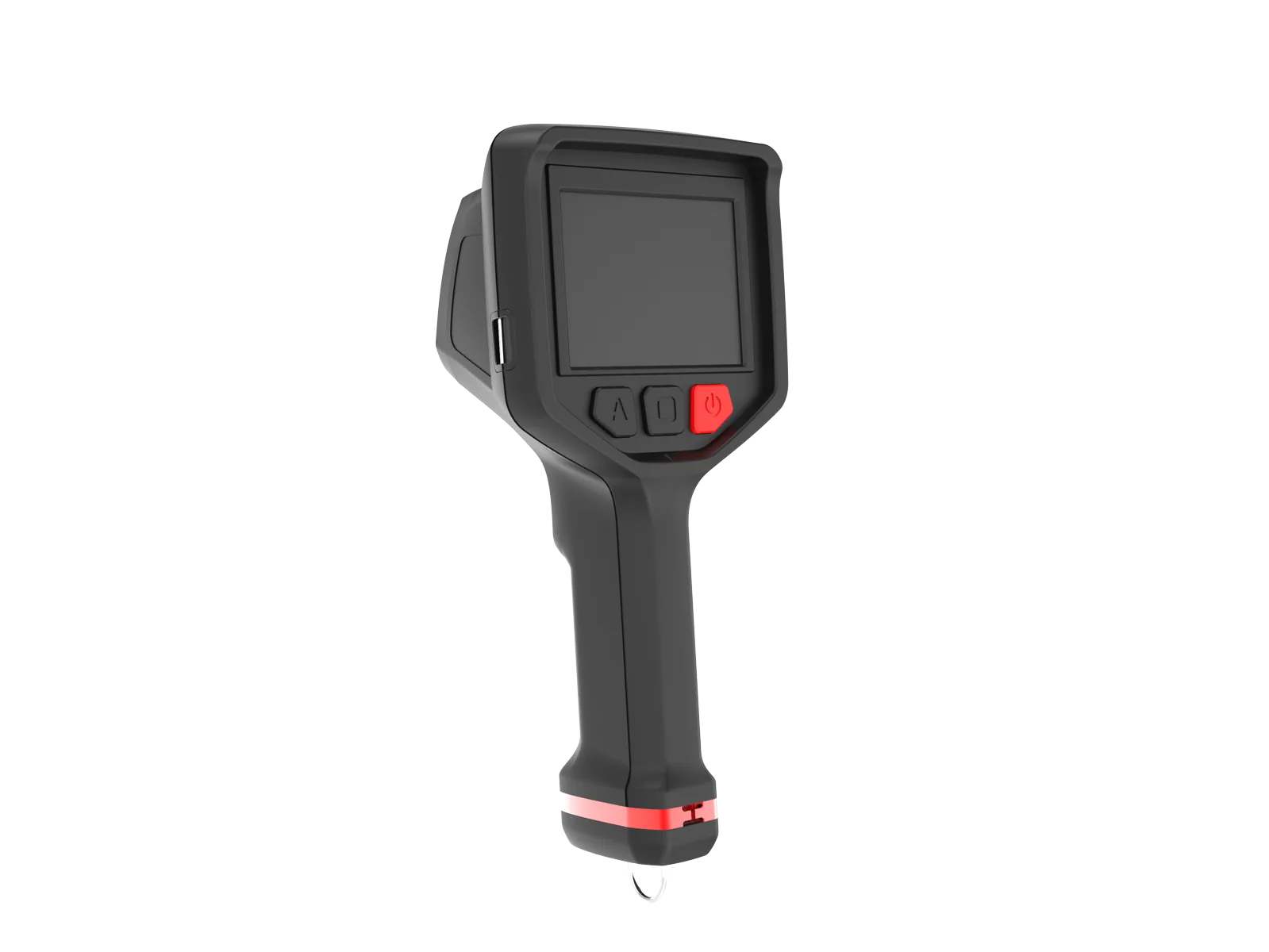

XF300-B Firefighting Camera
Advanced firefighting thermal camera with 384×288 IR, electronic compass, laser ranging, 260°C heat resistance, and explosion-proof battery.
Branding options: neutral packaging is available. Custom branding is subject to model, quantity and order confirmation.
- ✓ Explosion-proof battery
- ✓ Electronic compass
- ✓ Laser ranging
- ✓ 260°C heat resistance
- ✓ IP67 protection
- ✓ WiFi & 4G transmission
✓ Certification Documents Available
✓ Warranty Terms Confirmed by Model
✓ Ships Worldwide
✓ Selected Supply Channel
Technical Specifications
| Model | XF300-B |
| Detector Type | Uncooled FPA, Amorphous silicon or VOX |
| IR Resolution | 384 × 288 |
| Thermal Sensitivity (NETD) | < 40mK (@25°C) |
| Spectral Range | 7.5 ~ 14 μm |
| Field of View | 44.2° × 33.9° |
| Focus | Fixed |
| Display | 3.5-inch sunlight-readable, 320×240 |
| Temperature Range | -20°C ~ +150°C / 0°C ~ +410°C / +300°C ~ +2000°C |
| Temperature Accuracy | ±2°C or 2% of readings |
| Laser Ranging | Supported |
| Electronic Compass | Supported |
| Battery | Explosion-proof lithium battery |
| Battery Life | > 4 hours |
| Weight | 760 g (with battery) |
| Dimensions | 257 × 107 × 80 mm |
| Protection Level | IP67 |
| Drop Resistance | 2 m |
| High Temp Operation | 80°C: 30min / 120°C: 10min / 260°C: 5min |
Applications
- Firefighting operations
- Hazmat inspection
- Industrial fire prevention
- Vehicle-mounted use
- High-temperature environments
