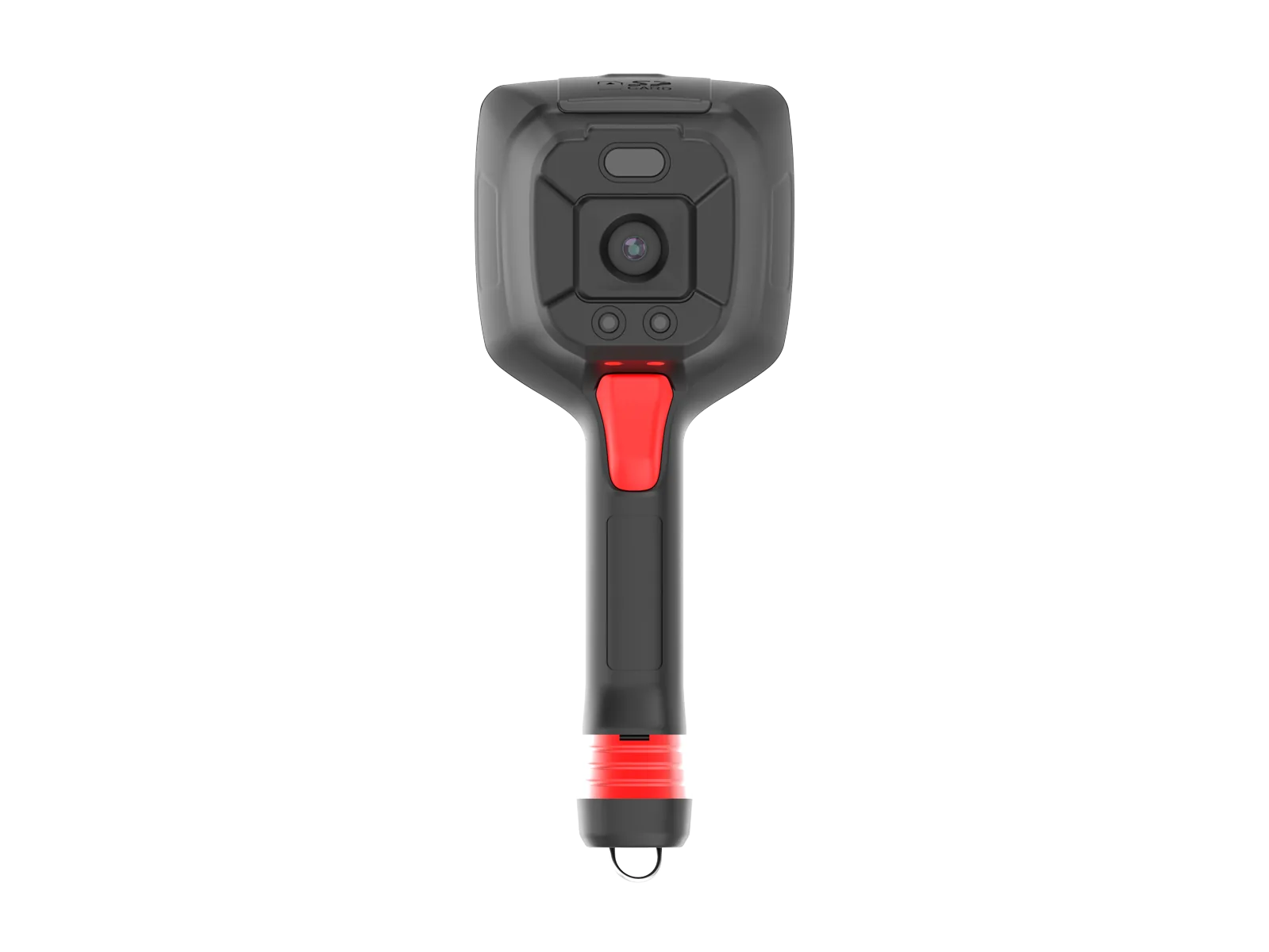

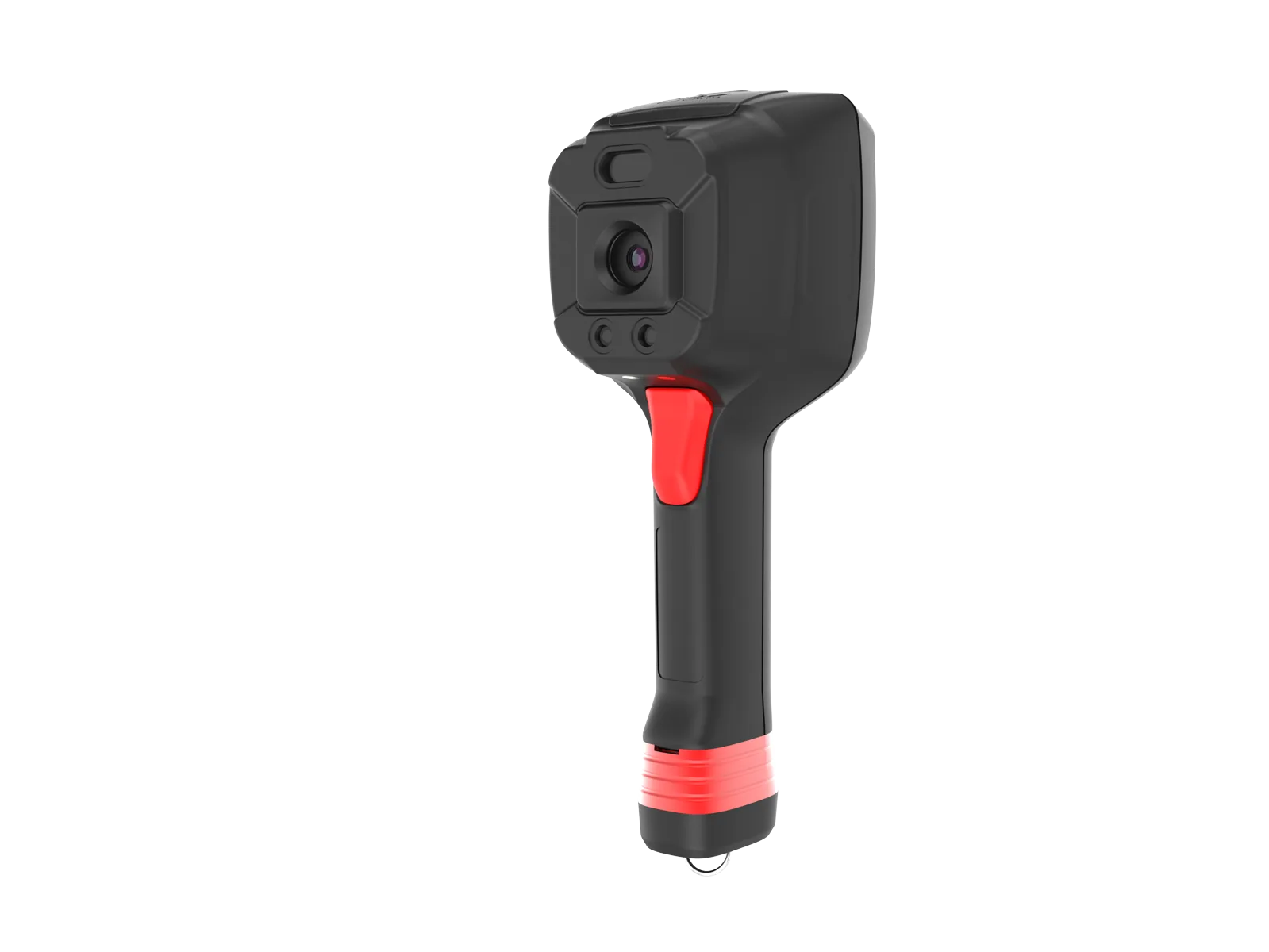

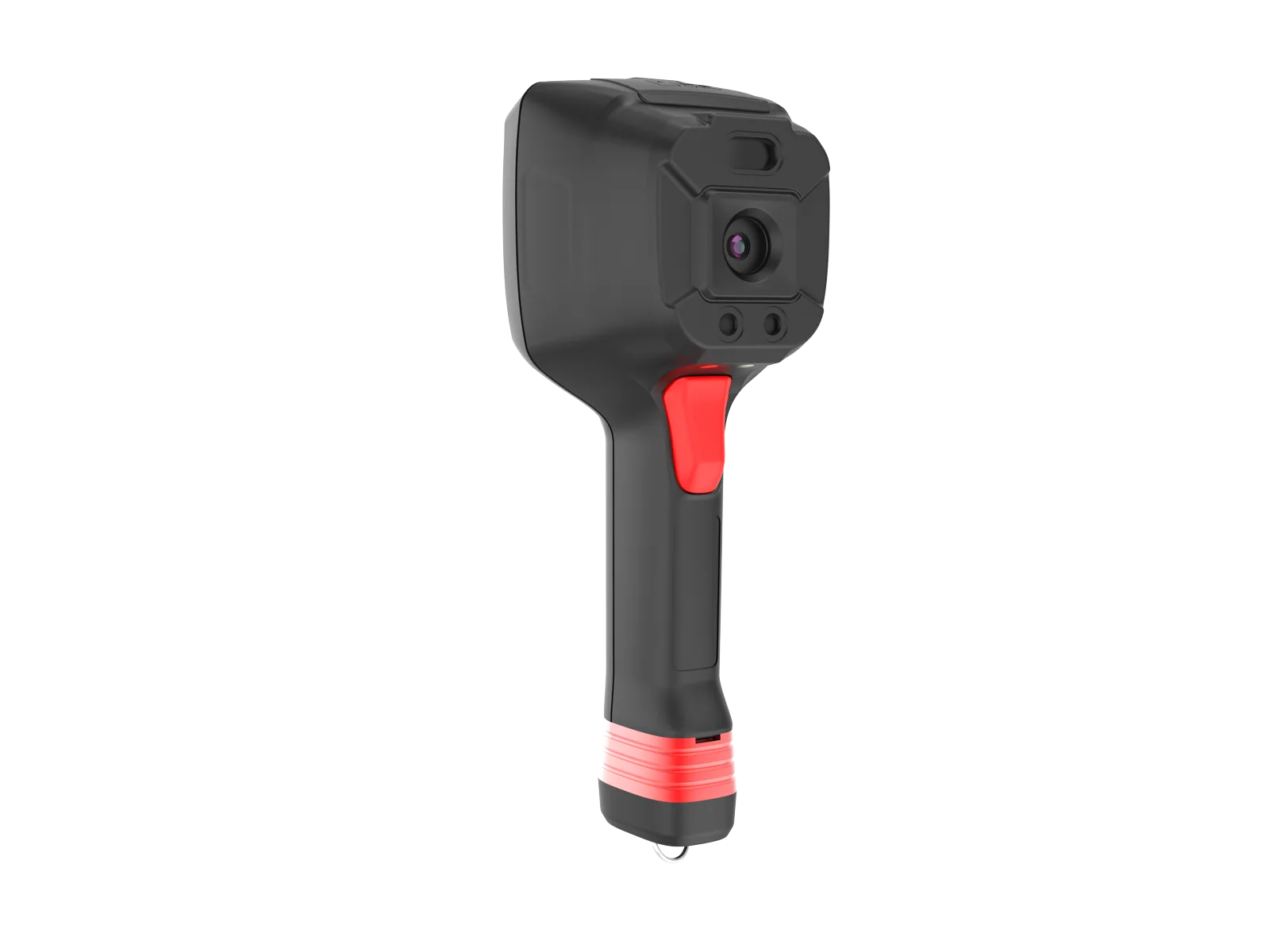

XF300-C — Firefighting Thermal Imaging Camera
XF300-C Firefighting Thermal Imaging Camera
IP67 Waterproof and Dustproof — Fully sealed against dust and water immersion — built for the harshest conditions.
Withstands 260C for 5 Minutes — Operates safely in high-temperature fire environments.
2m Drop Protection — Survives accidental drops on hard surfaces during emergency operations.
384x288 IR Resolution — Clear thermal imaging through smoke and darkness for victim location and fire source identification.
Built-in Laser Distance Measurement — Quickly assess distances to fire sources and structural hazards.
✓ Availability on Request
✓ Warranty Confirmed by Model
✓ Certification Documents Available
✓ Worldwide Shipping
Availability and lead time are confirmed in the quotation
| IR Resolution | 384x288 | |
| Detector Type | Uncooled FPA, Amorphous silicon or VOX | |
| Thermal Sensitivity (NETD) | <40mK @25°C | |
| Spectral Range | 7.5–14μm | |
| Field of View | 44.2 x 33.9 degrees | |
| Temperature Range | −20°C to +150°C / 0°C to +410°C / +300°C to +2000°C (auto-switching) | |
| Temperature Accuracy | ±2°C or 2% of reading | |

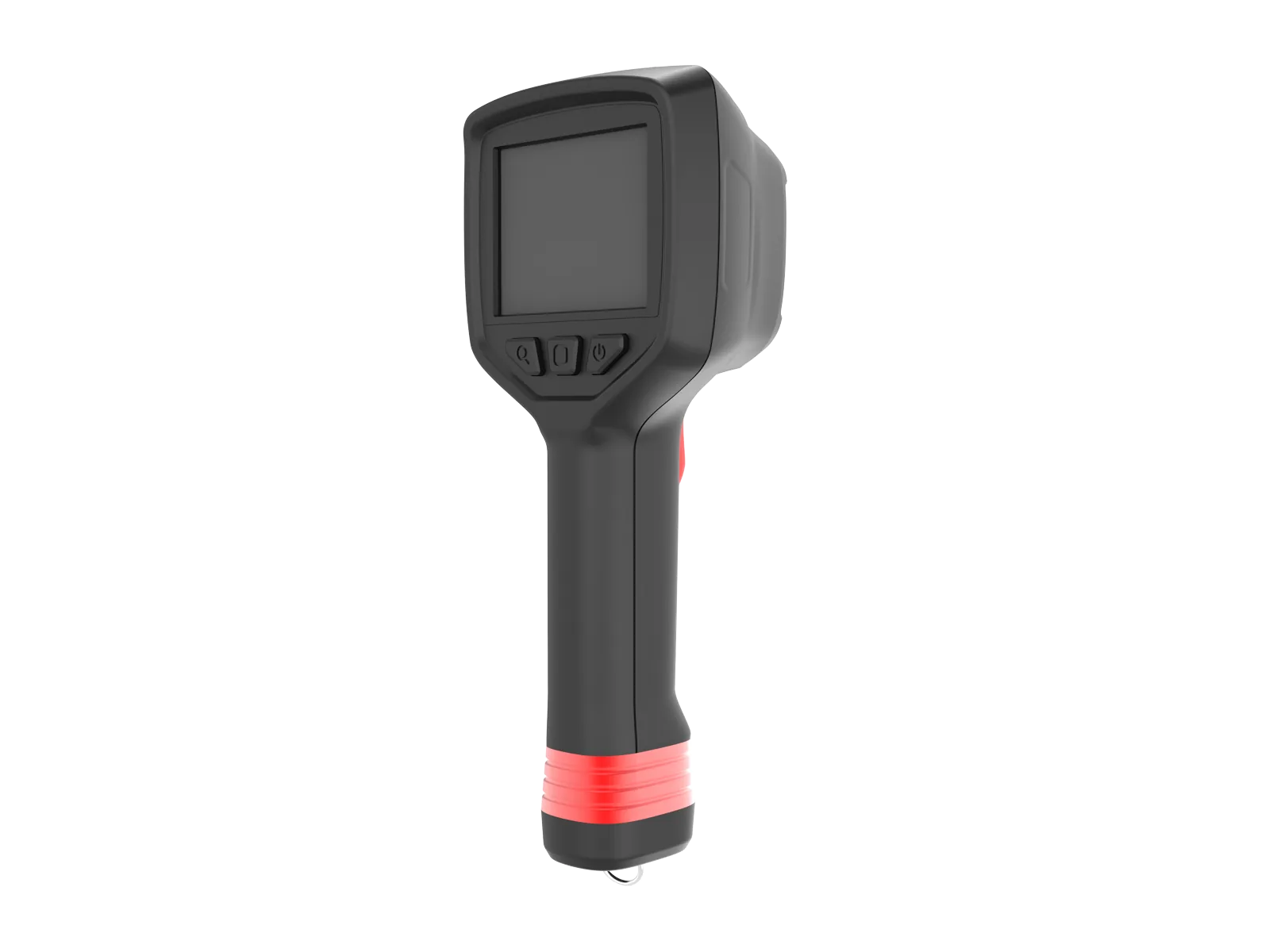

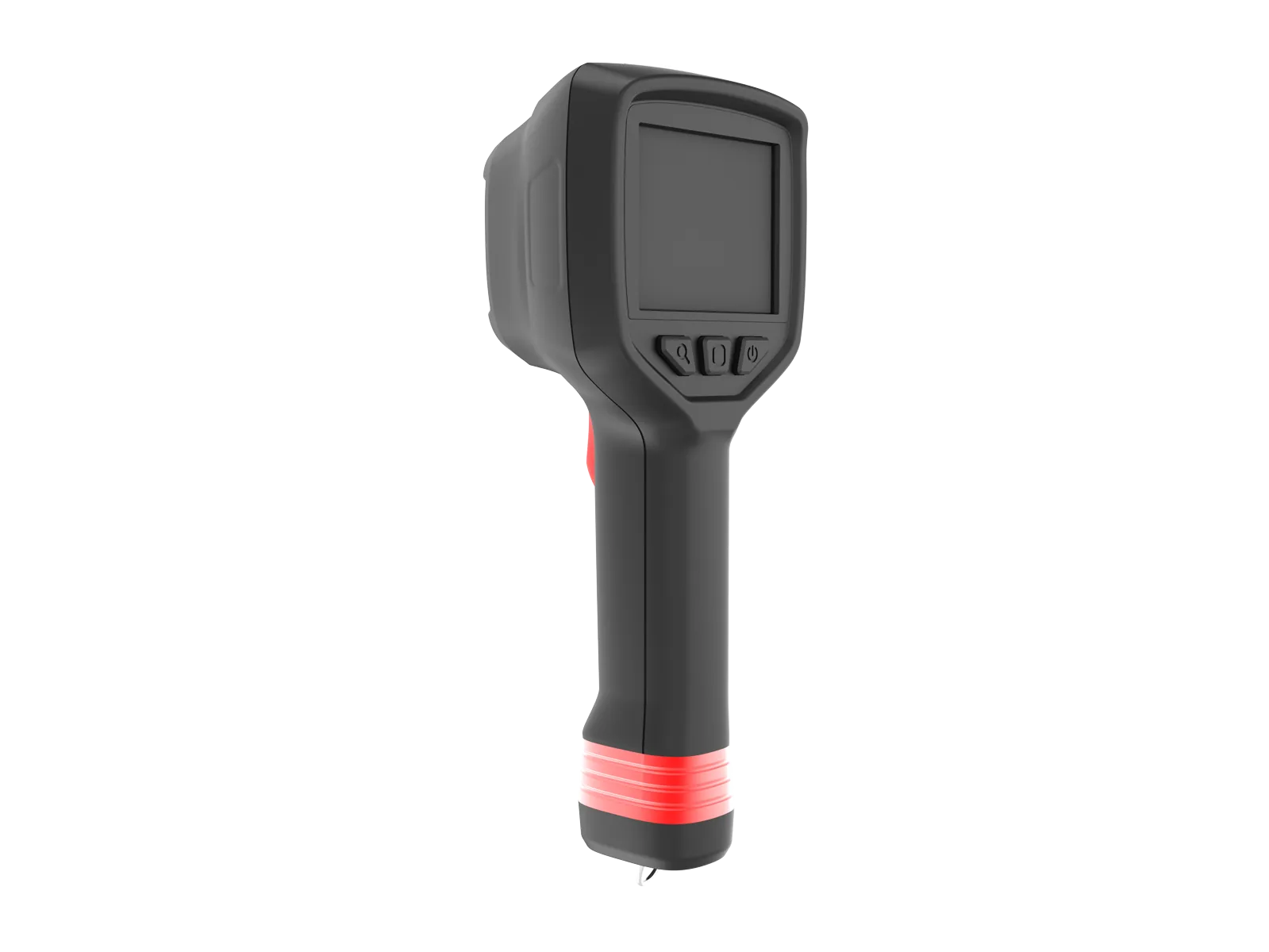

| Display | 4 inch sunlight-readable, 320x240 | |
| Visible Camera | 5MP with LED light | |
| Laser Distance | Supported | |
| Connectivity | WiFi, 4G | |
| Battery Life | >4 hours at 25°C | |
| Protection | IP67 | |
| Drop Protection | 2m | |
| Heat Resistance | 260°C for 5 min / 120°C for 10 min / 80°C for 30 min | |
| Weight | 1.2kg / 760g (model-dependent) | |
